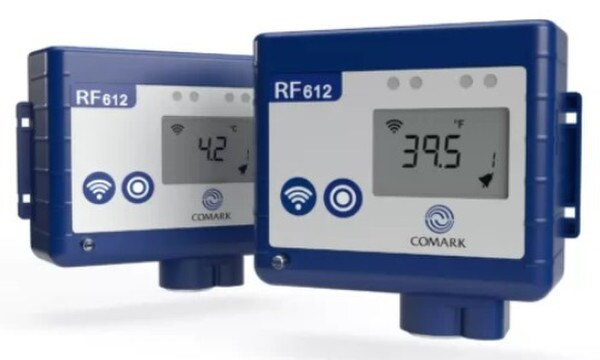

RF612 WiFi Temperature Transmitter
The Diligence 600 WiFi Temperature Transmitter is designed to monitor the ambient temperature of your storage and work areas with an integral sensor while allowing up to FOUR external points of temperature measurement to also be measured and recorded.
- Battery Powered
- Integral Temperature Sensor
- Add Up to 4 External Channels
- Connects to your Local WiFi Network
- Designed for Easy Self-Installation
Directly connect a single Lumberg Thermistor Probe to suit your individual requirement or add an adaptor and monitor up to FOUR channels.
Integral Temperature Sensor Specifications: | |
Sensor Type | Thermistor |
Scales | °C and °F |
Temperature Measurement Range | -18°C to +55°C (-0.4°F to +131°F) - See Note 1 |
Accuracy 0°C to +55°C (-32°F to +131°F) | <±0.3°C (±0.6°F) - See Note 2 |
Accuracy (full range) | ±0.5°C (±0.9°F) - See Note 2 |
Temperature Resolution | 0.1°C (0.2°F) |
External Probes Specifications: | |
Number of External Channels | 4 |
Sensor Type | Thermistor |
Connector | 6-Pin Lumberg |
Scales | °C and °F |
Temperature Measurement Range | -40°C to +125°C (-40°F to +257°F) |
System Accuracy 0°C to +70°C (-32°F to +158°F) - including Probe | <±0.3°C (±0.6°F) - See Note 2 |
System Accuracy -25°C to 100°C (13°F to +212°F) - including Probe | ±0.5°C (±0.9°F) - See Note 2 |
System Accuracy (Full Range) - including Probe | ±1°C (±1.8°F) |
Temperature Resolution | 0.1°C (0.2°F) |
Common Specifications (All Models): | |
Hi Hi/Lo Lo Alarm - All Channels exlcuding Door Switch | Hi Hi and Lo Lo Alarms with Alarm Delay and fully selectable Alarms |
Alarm Delay 0-60 minutes - All Channels excluding Door Switch | Delay is programmable for either H H or Hi Hi Alarms or both independently |
Door Switch (Optional) | Optional accessory RF521 or RF522 |
Door Sensor Resolution | 5 seconds |
Door Switch Alarms | Door Switch Alarms Continuous and Average (up to 60 minutes programmable) |
Ambient Operating Temperature Range | -18 to +55°C (-0.4°F to 131°F) - 10-90% RH - Non-Condensing - See Note 1 |
Storage Temperature | -18 to +55°C (-0.4°F to 131°F) - See Note 1 |
Wireless Frequency | 2.4GHz WiFi (IEEE 802.11b/g/n) |
Wireless Security | WPA2 Pre-Shared Key - See Note 3 |
Radio Range | Typically 20 metres indoors |
Clock Accuracy | 20ppm (1 minute/month) at +25°C (+77°F) |
Logging Memory | 140000 Max records - Depends on number of active channels |
Log Rate | Programmable between 1 minute and 60 minutes |
Channel Monitoring Rate | 1 Minute |
Wireless Radio Rate | Programmable between 5 Minutes to 24 Hours - See Note 5 |
Alarm/Active LEDs (Front) | RED - ALARM / GREEN - External Power |
Status LEDs (Side) | RED - WiFi Active / YELLOW - Communications Active / GREEN - Mains Power Connected |
Case Material | Over Moulded food safe clear Polycarbonate with BioCote® Antimicrobial Protection |
Environmental Protection | Case enclosure designed to meet IP65 BS EN 60529 |
Battery Type | 4 x AA Alkaline or Energizer MAX Lithium - See Note 4 |
Battery Life | Up to 1 year |
Dimensions | Length 110mm, Height 100mm, Depth 45mm |
Weight | 300g |
Mains PSU (Optional) | Optional Mains PSU Part No RF520 (100-240VAC 0.3A 50/60Hz) |
Maximum Probe Lead Length | Not to exceed 30m |
Warranty | 2 Years |
Notes: | |
1 - Temperature and Storage range with Energizer Lithium L91 Cells is expanded to -30 to +60°C (-22°F to +140°F) | |
2 - When used with a Comark Probe | |
3 - Other WiFi Security Options will be provided by Firmware Update | |
4 - Use Energizer MAX L91 for improved battery life in all applications but especially recommended for use in low temperature applications. | |
5 - The WiFi Rate should be set for 4 hours or greater for best battery life. This will not affect Alarm Notifications. |
- RF612 WIFI Temperature Monitor ( Thermistor )
- Battery Powered ( Replaceable )
- BioCote® Antimicrobial Protection
- Mounting Bracket & Wire Ties
- Instructions
- Expert Technical Support
- Not Included:
- Temperature Sensors are ordered separately
- WIFI Monitoring Service required an annual subscription
- Speak with a TIPTEMP Thermal Advisor to Discuss the intended use to achieve your best results
- Let your IT Department know you intend to use WIFI Monitoring equipment on their Network.
