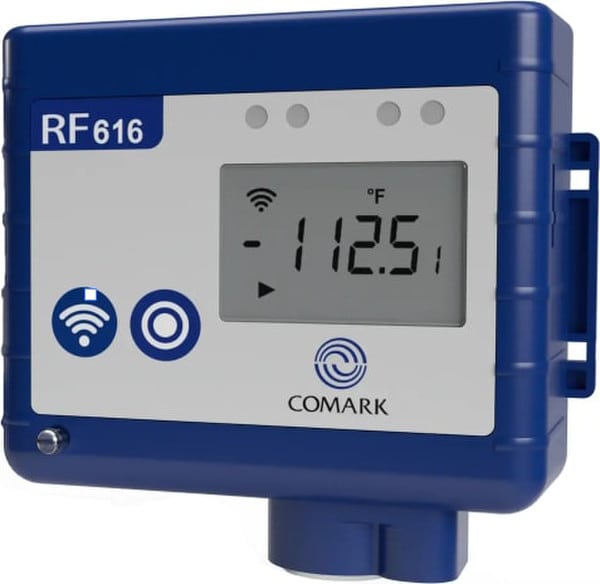

RF616 WiFi Temp. PT100 Transmitter
The Diligence 600 WiFi PT100 Temperature Transmitter is designed to monitor an external high-accuracy PT100 probe and the ambient temperature of your storage and work areas with its integral sensor.
Integral Temperature Sensor Specifications: | |
| Sensor Type | Thermistor |
| Scales | °C and °F |
| Temperature Measurement Range | -18°C to +55°C (-0.4°F to +131°F) - See Note 1 |
| Accuracy 0°C to +55°C (-32°F to +131°F) | <±0.3°C (±0.6°F) - See Note 2 |
| Accuracy (full range) | ±0.5°C (±0.9°F) - See Note 2 |
| Temperature Resolution | 0.1° |
External Probe Specifications: | |
| Number of External Channels | 1 |
| Sensor Type | PT100 (4-Wire) |
| Connector | 6-Pin Lumberg |
| Scales | °C and °F |
| Temperature Measurement Range | -200°C to +150°C (-328°F to +302°F) |
| Instrument Accuracy (Full Range) | <±0.1°C (±0.2°F) - See Note 2 |
| Temperature Resolution | 0.05°C (0.1°F) |
Common Specifications (All Models Excluding RF612): | |
| Hi/Lo Alarm - All Channels excluding Door Switch | H and Lo Alarms with Alarm Delay and fully selectable Alarms |
| Alarm Delay 0-60 minutes - All Channels excluding Door Switch | Delay is programmable for either H H or Hi Hi Alarms or both independently |
| Ambient Operating Temperature Range | -18 to +55°C (-0.4°F to 131°F) - 10-90% RH - Non-Condensing - See Note 1 |
| Storage Temperature | -18 to +55°C (-0.4°F to 131°F) - See Note 1 |
| Wireless Frequency | 2.4GHz Wi-Fi (IEEE 802.11b/g/n) |
| Wireless Security | WPA2 Pre-Shared Key - See Note 3 |
| Radio Range | Typically, 20 metres indoors |
| Clock Accuracy | 20ppm (1 minute/month) at +25°C (+77°F) |
| Logging Memory | 140,000 Max records - Depends on number of active channels |
| Log Rate | Programmable between 1 minute and 60 minutes |
| Channel Monitoring Rate | 1 Minute |
| Wireless Radio Rate | Programmable between 5 Minutes to 24 Hours - See Note 5 |
| Alarm/Active LEDs (Front) | RED - ALARM / GREEN - External Power |
| Status LEDs (Side) | RED - Wi-Fi Active / YELLOW - Communications Active / GREEN - Mains Power Connected |
| Case Material | Over Moulded food safe clear Polycarbonate with BioCote® Antimicrobial Protection |
| Environmental Protection | Case enclosure designed to meet IP65 BS EN 60529 |
| Battery Type | 4 x AA Alkaline or Energizer MAX Lithium - See Note 4 |
| Battery Life | Up to 1 year |
| Dimensions | Length 110mm, Height 100mm, Depth 45mm |
| Weight | 300g |
| Warranty | 2 Years |
- Speak with a TIPTEMP Thermal Advisor to Discuss the intended use to achieve your best results
- Let your IT Department know you intend to use WIFI Monitoring equipment on their Network.
