📶 RF615 WiFi Multi-Parameter Tx
Key Features
✅ Wi-Fi multi-parameter transmitter for voltage and current signals
✅ Supports 0–10 V, 0–1 V, and 4–20 mA inputs
✅ High and low alarms with fully selectable delays
✅ Monitors up to four external sensors simultaneously
✅ Internal temperature sensor for device diagnostics
✅ Battery-powered for flexible installation
✅ Ideal for industrial, facilities, and process monitoring
✅ Scalable cloud platform for multi-device deployments

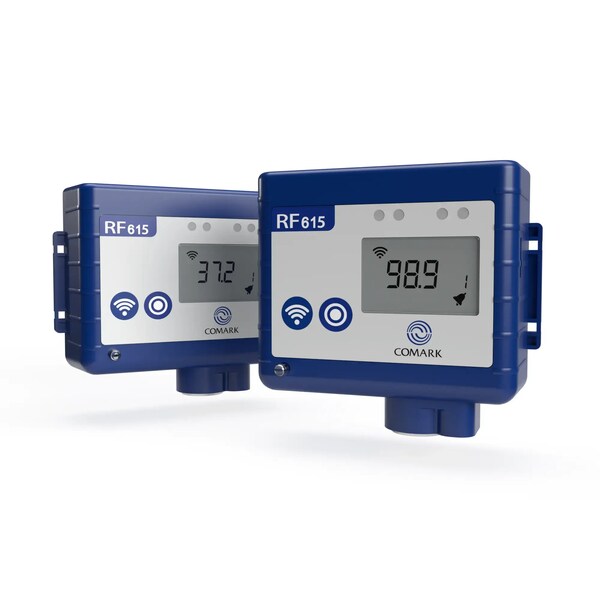

RF615 WiFi Multi-Parameter Transmitter
WiFi Multi-Parameter Transmitter is designed for a wide range of applications and can measure parameters such as current, voltage, pressure, gas, flow, level, dissolved oxygen and CO2.
Battery
Integral Temperature Sensor
Up to 4 External Sensors
Connects to your Local WiFi Network
Sensor Type Thermistor
Scales°C and °F
Temperature Measurement Range: -18°C to +55°C (-0.4°F to +131°F)
| Integral Temperature Sensor Specifications: | |
| Sensor Type | Thermistor |
| Scales | °C and °F |
| Temperature Measurement Range | -18°C to +55°C (-0.4°F to +131°F) - See Note 1 |
| Accuracy 0°C to +55°C (-32°F to +131°F) | <±0.3°C (±0.6°F) - See Note 2 |
| Accuracy (full range) | ±0.5°C (±0.9°F) - See Note 2 |
| Temperature Resolution | 0.1°C (0.2°F) |
| External Probes Specifications: | |
| Number of External Channels | 4 |
| Sensor Type | Voltage or Current Measurement |
| Connector | 6-Pin Lumberg - See Note 4 |
| Scales | °C and °F |
| Temperature Measurement Range (Thermocouple Type T) | -200 to +400°C (-328 to +752°F) |
| Temperature Measurement Range (Thermocouple Type K) | -200 to +1372°C (-328 to 2501.6°F) |
| Instrument Accuracy | +/-0.1% ±0.2°C (±0.4°F) full range @ +23°C Ambient |
| System Accuracy Type T - Over the range 0°C to +70°C (32°F to +158°F) | ±0.5°C @ +23°C (+73°F) Ambient - See Note 2 |
| System Accuracy Type T and K - Full Range | Please refer to specification for the chosen thermocouple probe |
| Temperature Resolution | 0.1°C (0.2°F) |
| Common Specifications (All Models): | |
| Hi Hi/Lo Lo Alarm - All Channels exlcuding Door Switch | Hi Hi and Lo Lo Alarms with Alarm Delay and fully selectable Alarms |
| Alarm Delay 0-60 minutes - All Channels excluding Door Switch | Delay is programmable for either H H or Hi Hi Alarms or both independently |
| Door Switch (Optional) | Optional accessory RF521 or RF522 |
| Door Sensor Resolution | 5 seconds |
| Door Switch Alarms | Door Switch Alarms Continuous and Average (up to 60 minutes programmable) |
| Ambient Operating Temperature Range | -18 to +55°C (-0.4°F to 131°F) - 10-90% RH - Non-Condensing - See Note 1 |
| Storage Temperature | -18 to +55°C (-0.4°F to 131°F) - See Note 1 |
| Wireless Frequency | 2.4GHz WiFi (IEEE 802.11b/g/n) |
| Wireless Security | WPA2 Pre-Shared Key - See Note 3 |
| Radio Range | Typically 20 metres indoors |
| Clock Accuracy | 20ppm (1 minute/month) at +25°C (+77°F) |
| Logging Memory | 140000 Max records - Depends on number of active channels |
| Log Rate | Programmable between 1 minute and 60 minutes |
| Channel Monitoring Rate | 1 Minute |
| Wireless Radio Rate | Programmable between 5 Minutes to 24 Hours - See Note 5 |
| Alarm/Active LEDs (Front) | RED - ALARM / GREEN - External Power |
| Status LEDs (Side) | RED - WiFi Active / YELLOW - Communications Active / GREEN - Mains Power Connected |
| Case Material | Over Moulded food safe clear Polycarbonate with BioCote® Antimicrobial Protection |
| Environmental Protection | Case enclosure designed to meet IP65 BS EN 60529 |
| Battery Type | 4 x AA Alkaline or Energizer MAX Lithium - See Note 2 |
| Battery Life | Up to 1 year |
| Dimensions | Length 110mm, Height 100mm, Depth 45mm |
| Weight | 300g |
| Mains PSU (Optional) | Optional Mains PSU Part No RF520 (100-240VAC 0.3A 50/60Hz) |
| Maximum Probe Lead Length | Not to exceed 30m |
| Warranty | 2 Years |
- RF615 WiFi Multi-Parameter Transmitter ( Thermistor )
- Battery Powered ( Replaceable )
- Mounting Bracket & Wire Ties
- Instructions
- Expert Technical Support
- Not Included:
- Sensors are ordered separately
- WIFI Monitoring Service Required - annual subscription
- Speak with a TIPTEMP Thermal Advisor to Discuss the intended use to achieve your best results
- Let your IT Department know you intend to use WIFI Monitoring equipment on their Network.
