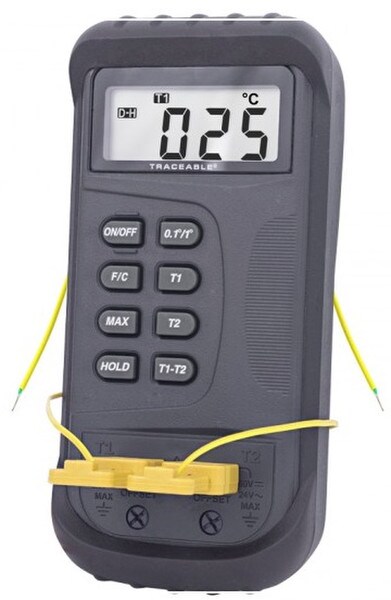

2-Channel Thermocouple Thermometer
Unmatched precision
Provides recessed front panel adjustable offsets on two channels allowing user to adjust thermometer exactly to a specific temperature, in-house calibration, or particular sensor for increased accuracy.
Shockproof rubber case

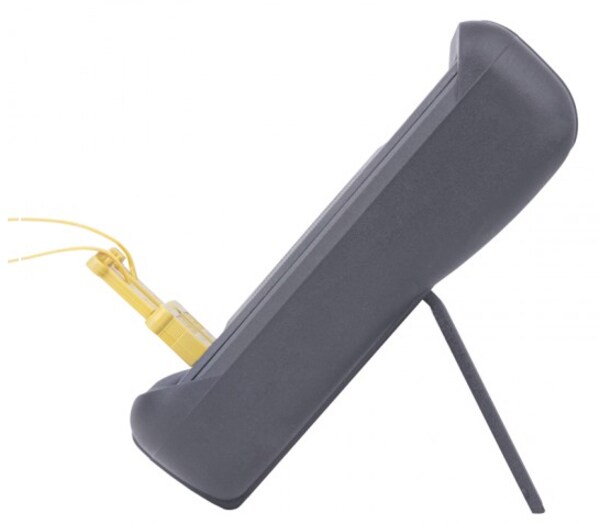

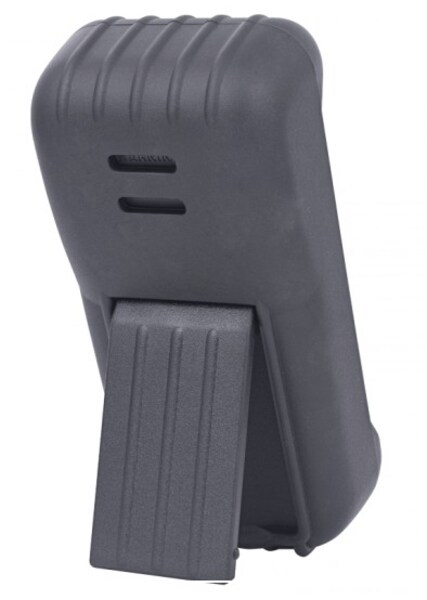

Provided rubberized case makes it a virtually "environment-proof" instrument for all weather, shock, and abusive conditions. Supplied with Velcro„¢ wrist strap. Built-in stand makes it ideal for lab bench.
Stores highest temperatures reached
Max button captures the highest reading achieved. HOLD button freezes display to capture current reading. Uses all Type-K thermocouples. Supplied with two immediate-response probes which indicate temperature changes in less than one second.
Traceable to NIST for accuracy
To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology).
| Type of Sensor: | Uses all Type-K thermocouples |
| Temperature Sensing Range: | -58°F ~ 2000°F ( -50°C ~ 1300°C ) |
| Temperature Accuracy: | +/- 3°F (+/- 1.5°C) typical |
| Temperature Resolution: | Switchable 0.1° or 1° |
| Temperature Scale: | °F and °C |
| Sensor Wire Length: | (2) 48" 24ga. Wire Thermocouples ( included ) |
| Min/Max Memory: | Yes |
| Dimensions: | 2-3/4" x 5-1/4" x 1-1/4" |
| Weight: | 5.5 Ounces |
| Calibration Available: | Yes (included) |
| Power: | 9V Battery |
| Sampling Rate: | 2.5 times per second |
| Special Notes: | Field Calibration & Differential Feature |
- Thermocouple Thermometer w/ built-in Stand
- Traceable Calibration Certificate
- 9V Battery
- Two 48" Thermocouple Sensors ( Max Temp 500°F/260°C)
- Expert Technical Support
ON Turns power on
OFF Turns power off
MAX Records and updates maximum values
HOLD "Freezes" the display
F/C Selects the temperature to be displayed in either °F or °C
T1 Displays temperature reading from probe 1
T2 Displays temperature reading from probe 2
T1/T2 Displays the difference in temperature between probe 1 and probe
OFFSET ADJUSTMENT (Fine tuning)
The offset controls are set at the factory to allow for the variations found in standard thermocouples. By adjusting the offset controls, found below the thermocouple plugs, you can optimize measurement accuracy for a particular thermocouple (or pair of thermocouples) at a particular temperature
