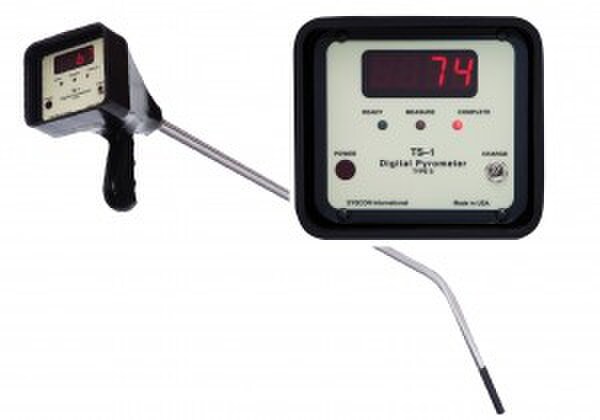

TS-1 Handheld Digital Pyrometer
Details
Handheld Digital Pyrometer
Sturdy, accurate, easy to use, portable and dependable, making it the ideal molten metal temperature measuring instrument for ferrous foundries and steel plants. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass and Silver. When the thermocouple is dipped in molten metal, the microprocessor reads the millivolts and mathematically converts it and provides the temperature reading. The indicator lamps (LEDs) on the front panel indicate and sound a buzzer when the correct reading is displayed. This entire process completes within 3 to 5 seconds, after which the thermocouple tip can be withdrawn.
- Plateau Detection Software
- +/- 1°F (+/- 1°C) accuracy due to microprocessor-based technology
- +/- 3°F (+/-2°C) overall system accuracy
- Rechargeable Nickel-Cadmium battery and automatic low-battery indication
- Bright 0.6″ digital display
- Automatic power shut-off
- End of the measuring cycle indicator
- No mechanical switches
- 72″ lance with 45˚ bend at 12″ (standard length 48")
- Available with K or S/R/B thermocouple lances
-Measuring Range:
1000˚F – 3300˚F (538°C – 1816°C) – TS-1 S/R/B
0 – 2500˚F (0 – 1371°C) – TS-1 K
-Linearization: Over the entire measuring range
-Temperature Detection Method:
Flat Plateau – TS-1 S/R/B
Peak Hold/Track – TS-1 K
-Automatic Cold Junction Compensation
-Operating Temperature: 0 – 122˚F (0 – 50˚C)
-Display:
4 digits, 7 segment LEDs
Height – 0.6” (15.4 cm)
-T/C Element:
Pt/Pt Rh 10%, 13%, 6/30%
Cr / Al
-Weight with Standard Lance: 5.5 lb (2.5 kg)
-Power Supply:
4 NiCad Batteries, 1.2 V each
Type “AA”
Battery Charger Included
-Response Time:
3 to 5 seconds for TS-1 S/R/B
Approx. 30 seconds for TS-1 K with N. F. Probe
-Calibration Standard: IPTS 48, 68
-Housing: Dust-proof aluminum housing with handle
