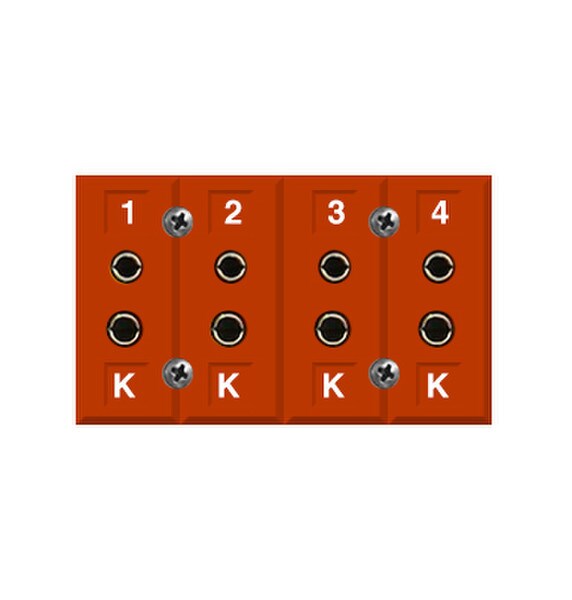

🟡 High-Temp Type K 4-Circuit Stripanel
This high-temperature Type K thermocouple Stripanel provides four connection circuits in a compact, single-row panel. It accepts full-size 2-pole Type K thermocouple plugs and is designed for applications where standard thermocouple connector temperature ratings are not sufficient.
The Stripanel is rated for continuous operation up to 800°F (427°C), making it suitable for high-temperature test, furnace, oven, and industrial process installations requiring centralized Type K connections.
──────────────────────────
Ideal Applications
🔥 Furnaces and industrial ovens
🏭 High-temperature process equipment
🧪 Laboratory test systems
📈 Temperature data acquisition
⚙️ Multi-zone temperature control systems
🔬 Research and development equipment
🧮 Multi-point Type K installations
🛠️ Equipment and test-panel fabrication
Compliance & Risk Mitigation
🔥 High-temp design supports elevated environments
🟡 Maintains Type K circuit compatibility
🧮 Four circuits simplify multi-point connections
🔌 Correct connectors help maintain signal integrity
📐 Proper cutout supports secure installation
🔴 Verify polarity before system operation
🛠 Inspect connections during routine maintenance
Use with compatible Type K thermocouples, extension wire, and full-size Type K plugs. Verify thermocouple type, polarity, wiring, panel cutout, mounting, and the temperature rating of all connected components before installation. Proper Type K connector and alloy matching helps maintain measurement integrity throughout the thermocouple circuit.
Sjpeak with a TIPTEMP Thermal Advisor 1-800-TIP-TEMP or EveryDegreeMatters@tiptemp.com
