"J" Thermocouple Jack Panel Large

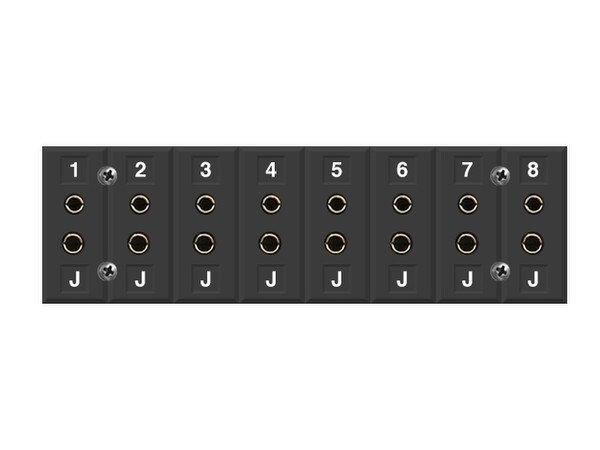

J Jack Strip Panel Large, full size 2 pole strip panel 11 circuits thermocouple type J.
TO ORDER Other Strippanel Configurations:
- Give Strippanel No. [e.g. 1032]
- Specify Number of circuits [e.g. 1032-6]
- Specify Thermocouple Type by Code [e.g. 1032-6-J]
- For vertical rows add suffix "V" [e.g. 1032-6-J-V]
- For Hi-Temp Stripanel [e.g. 1132-6-J]
- Available Thermocouple Types: J,K,T,N,E,R,S,U, also "C"
- Gold plated inserts are available. Use suffix "G" [e.g. 1032-6-J-G]

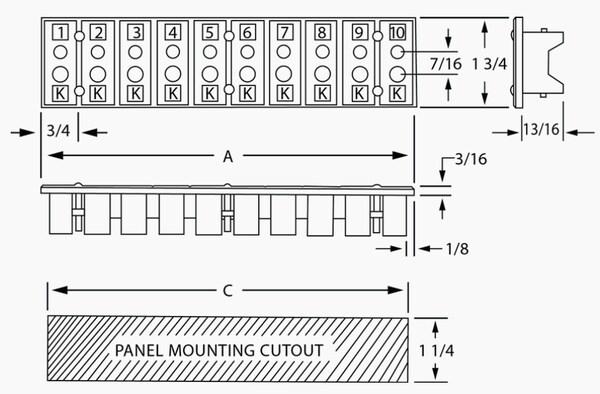

| Number of Circuits | "A" Dimension Panel Length | "C" Dimension Cutout Length | Full Size 2-Pole Panel Part No. | Hi-Temp Full Size 2-Pole Panel Part No. |
|---|---|---|---|---|
| 2 | 1 1/2" | 1 5/16" | 1032-2-J | 1132-2-J |
| 3 | 2 1/4" | 2 1/16" | 1032-3-J | 1132-3-J |
| 4 | 3" | 2 13/16" | 1032-4-J | 1132-4-J |
| 5 | 3 3/4" | 3 9/16" (84mm) | 1032-5-J | 1132-5-J |
| 6 | 4 1/2" | 4 5/16" | 1032-6-J | 1132-6-J |
| 7 | 5 1/4" | 5 1/16" | 1032-7-J | 1132-7-J |
| 8 | 6" | 5 13/16" | 1032-8-J | 1132-8-J |
| 9 | 6 3/4" | 6 9/16" | 1032-9-J | 1132-9-J |
| 10 | 7 1/2" | 7 5/16" | 1032-10-J | 1132-10-J |
| 11 | 8 1/4" | 8 1/16" | 1032-11-J | 1132-11-J |
| 12 | 9" | 8 13/16" | 1032-12-J | 1132-12-J |

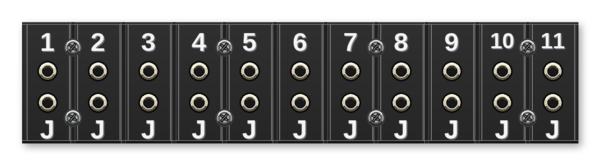

- 11 Circuit JThermocouple Jack Panel
