IFC-200 USB Cable and Software

(0)No Reviews yet
Provided: Each
USB Cable and Software package for battery powered MATREC data loggers.

Notable Features

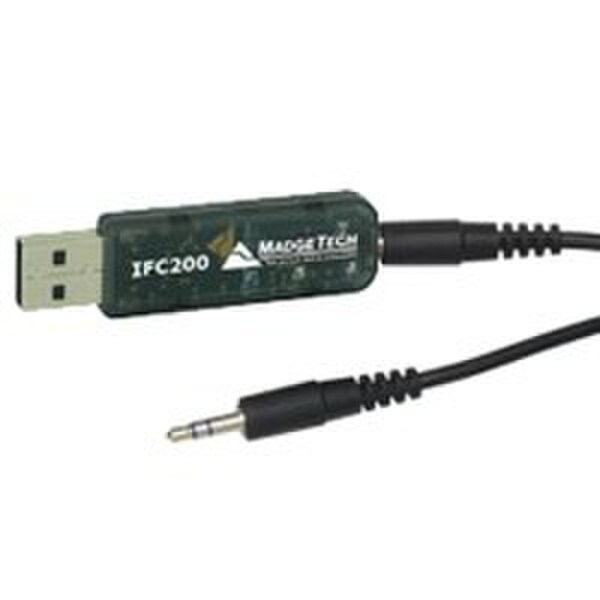

MadgeTech’s IFC200 interface cable communicates between stand alone data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded. The IFC200 has been redesigned, and is now “plug and play”. It can be directly connected to a computer without installing any drivers and is compatible with Windows XP SP3, Windows Vista (32 and 64 bit), and Windows 7 (32 and 64 bit) operating systems. The improved IFC200 can now operate at up to 500 Volts RMS relative to the computer’s earth ground when attached. The IFC200 is equipped with communication LEDs, that provide a quick indication of the device status. The blue light illuminates when the device is plugged in and successfully recognized by Windows. The red light flashes when data is sent, and the green light flashes when data is received.
Used to download data from Madgtech Dataloggers.  3.5 mm phono plugs into logger and opposite side with USB connector plugs into computer.
