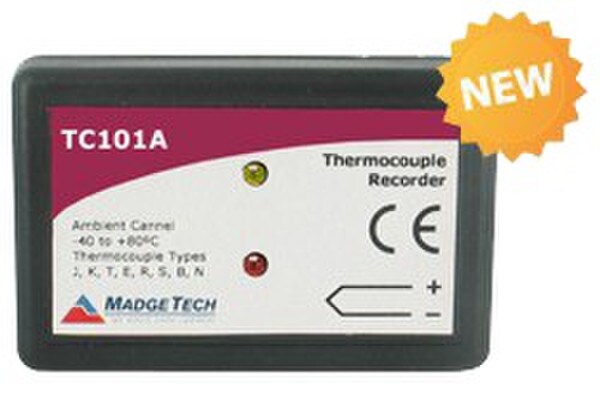

TC101A-MP Thermocouple Datalogger
The TC101A-MP is a compact, thermocouple-based temperature data logger designed for flexibility and ease of use.
Capable of working with various thermocouple probe types, the TC101A-MP delivers reliable temperature monitoring across extreme conditions. It features long battery life and high-capacity data storage, allowing for extended, uninterrupted logging.
The device integrates seamlessly with MadgeTech 4 Software, enabling straightforward setup, data retrieval, and analysis through clear graphical and tabular formats with customizable engineering units.
***Screw Terminal and Terminal Block connection variants available. Contact Orders@tiptemp.com for additional info and quotes.
| Specification | Details |
|---|---|
| Memory | 838,041 readings |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface | IFC200 |
| Approvals | CE |
| Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Channels | 1 Internal & 1 Remote |
- Mini Plug Thermocouple Input Data Logger
- Expert Technical Support
