Wireless Thermocouple Temperature Data Logger

(0)No Reviews yet
$329.00
QuantityPrice
1 – 9$329.00
10 – 24$312.55
25 – 49$296.10
50 – 74$279.65
75 – 99$271.43
100 +$263.20
SKU: MATREC142
Provided: Pack of 10 Pieces
-270°C ~ 1760°C (-454°F ~ 3200°F)

New

Notable Features

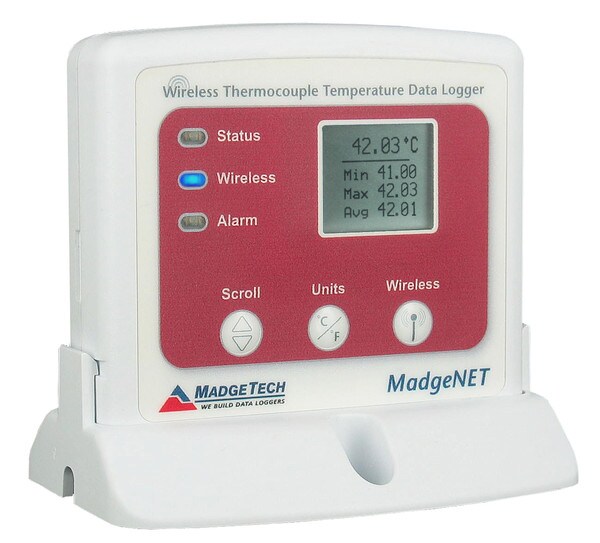

The MATREC142 is a wireless thermocouple based data logger with digital display. The device measures ambient temperatures, as well as remote temperature via a thermocouple (sold separately), making it ideal for monitoring perishable goods, vaccine storage, chemicals and more.

Starting, stopping and downloading from the device are all performed wirelessly using the MATACC109 wireless transceiver, allowing customer to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at period intervals. The convenient digital display provides the current reading for both channels. Minimum, maximum and average statistics are also provided for a convenient snap shot of the logged data.

For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm. Through the software, email and text message alarms can also be sent. The MATREC142 also features programmable trigger settings for applications in which temperature logging is critical only above or below a certain temperature. This information may be programmed into the device, and the data logger will only begin to log data to memory, once the temperature limit has been exceeded.

The logger can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional wireless loggers and transceivers may be required). The MATREC142 utilizes new software, allowing you to view data in graphical or tabular formats, as well as summaries and statistics for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
Type of Sensor: Thermocouple (types: J, K, T, E, R, S, B, N) *Purchased Separately
Temperature Sensing Range: -270°C ~ 1760°C (-454°F ~ 3200°F) *Sensor Dependent
Temperature Resolution: 0.01°
Temperature Scale: °F or °C
Sensor Dimensions: *Made to Order
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Calibration Available: Yes (included)
Battery Life: 3 years (typical, depending on recording rate and operating environment)
IP Rating: IP22
Special Notes: Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Sold As: Pack of 10 Pieces
Number of Sensors: 1
Data Points: 16,128
Exportable Data: Yes
Recording Rate: 1 reading every second up to 1 reading every 24 hours
Display: LCD
Requires Software: Yes (Purchased Separately)
Software Type: Windows
  • (1) Wireless Thermocouple Temperature Data Logger
  • (1) Mounting Bracket
  • (1) Calibration Certificate
  • Thermocouple *Purchased Separately
  • Transceiver and Software Package (p/n MATREC109) *Purchased Separately
  • Expert Technical Support
