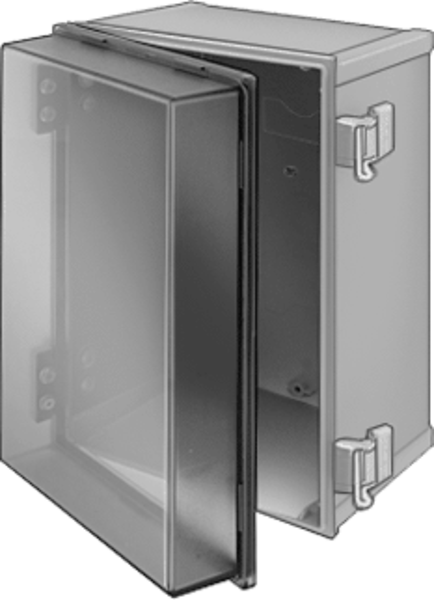

Protective Enclosure For Monitoring Instrumentation
Made of polycarbonate, these enclosures resist denting, chipping, and cracking. They have a clear cover, so you can inspect components without opening the enclosure. They are rated NEMA 4X for protection from dirt, washdowns, and corrosion.
NEMA 13 rated enclosures protect components from oil/coolant spraying. Enclosures with a quick-release latch offer easy access without screws or clamps to unfasten.
NEMA 13 rated enclosures protect components from oil/coolant spraying. Enclosures with a quick-release latch offer easy access without screws or clamps to unfasten.
- Height: 15 3/4"
- Width: 11 3/4"
- Depth: 7"
- Inside Dimensions Height: 15 1/8"
- Inside Dimensions Width: 11 1/8"
- Inside Dimensions Depth: 6 1/2"
- Environment: Corrosive, Oily, Washdown
- Environmental Rating: NEMA 4X; NEMA 13
- Material: Polycarbonate Plastic
- Cover Attachment Style: Hinged
- Hinge Material: Polycarbonate Plastic
- Cover Closure Method: Quick-Release Latch
- Cover Clarity: Clear
- Cover Material: Polycarbonate Plastic
- Knockouts: Without Knockouts
- Number of Mounting Holes: 4
- Hole Thread Size : M6
- Features: Gasketed Cover
- For Maximum Padlock Shackle Diameter: 3/8"
- Specifications Met: UL Listed
- Color: Gray
- RoHS: Compliant
