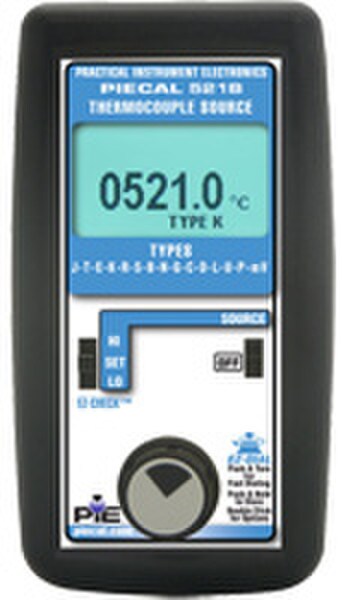

PIE Thermocouple Simulator Model 521B

(0)No Reviews yet
QuantityPrice
SKU: PIECAL001
Provided: Each
Supports ALL Thermocouple Inputs

Notable Features

The PIECAL 521B thermocouple sources simulate standard thermocouple curves over the entire industrial temperature range. Both units provide a precise, economical, easy to use thermocouple source for checkout and calibration of all thermocouple instruments”including transmitters, recorders, controllers, alarms, data acquisition, and computer systems”in the field, shop or control room.The PIECAL 521B thermocouple sources work with the thermocouples you use including types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) and P (Platinel II). Choose the PIECAL 520B if you have only one type of thermocouple connected to your instruments or the PIECAL 521B if you have multiple types of thermocouples. Both units include a miniature thermocouple connector on the top end for fast connections and are cold-junction compensated for changes in ambient temperature.The PIECAL521B thermocouple sources work with both newer instruments as well as older instruments. Easily set any value quickly to within 0.1° with the adjustable digital potentiometer plus store any three temperatures for instant recall with the EZ-CHECK switch. The 521B include a backlit display with larger digits, rugged switches and a battery compartment for fast battery changes. Add an optional rubber boot with tilt stand for extra protection.
Type of Sensor: Thermocouple
Temperature Accuracy: +/- 7°F (+/- 3.5°C) typical
Calibration Available: Certificate of Conformance ( $ Extra )
Power: AA Alkaline Batteries
Battery Life: 45 hours Continuous usage
  • (4) Alkaline batteries
  • Certificate of calibration
  • mV wire kit (1 red & 1 black leads with retractable shield banana plugs & alligator clips)
  • Expert Technical Sujpport
