🟡 Type "K" Thermocouple – SS Sheath
✅ Type K probe for general industrial temperature measurement
✅ Ungrounded junction reduces electrical noise interference
✅ Slim 1/16" sheath for fast thermal response
✅ 5-second response time for quick readings
✅ Stainless steel sheath for durability and corrosion resistance
✅ Flexible lead wire for easy installation
──────────────────────────

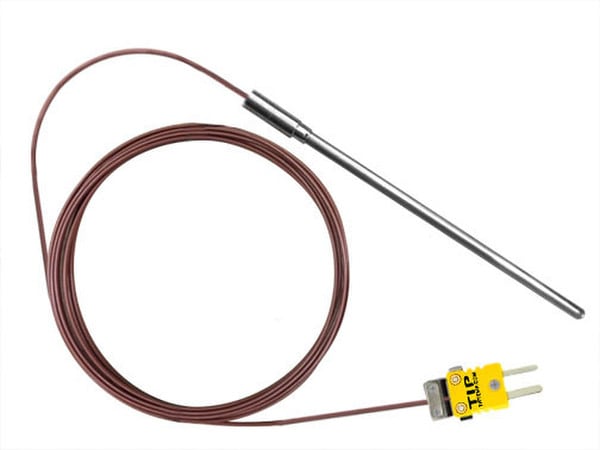

TC16-K-SS-116-U-36-TT-24-36-MM-CC no spring Thermocouple assembly, transition style type "K" calibration, 316SS sheath material 1/16" diameter, ungrounded junction, 36" long sheath with 36" length of Teflon insulated lead 24g wire with a mini K plug Special Order: Terms & Conditions Apply.
| Temperature Sensing Range: | Based on sheath Diameter, MAX: 920°C / 1690°F |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Weight: | .007 |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.062 |
| Sheath Length: | 36" |
| Transition Diameter: | 0.250" |
| Transition Length: | 1.0" |
| Wire Material: | Teflon |
| Wire Gauge: | 24 |
| Wire Length: | 36" |
| Plug Size: | Mini Male Attached |
| Max Temp: | 1690°F (920°C) |
