WiFi Logger w/ External Thermocouple Probe

(0)No Reviews yet
$399.94 $549.92
QuantityPrice
SKU: CMKREC024
Provided: Each
–454°F ~ 2372°F (–270°C ~ 1300°C)
Typical Accuracy ±2°F (±1°C)
  • Includes: Low-Cost “K” Thermocouple Sensor ( limited range )
  • Remote Monitoring Cloud Storage
  • Sends Text Messages & Email Alerts
  • Rechargeable Battery (Optional AC Power)
  • Configure Device using Smart Phone
Accepts Type K, J, T or N Thermocouples

IN STOCK

Current Stock: 5

Notable Features

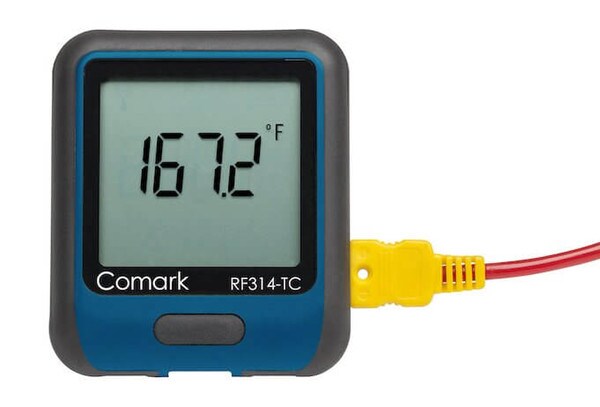

The RF314-TC Diligence WiFi data logger for measuring temperatures, comes complete with a thermocouple probe.

Data is transmitted wirelessly via a WiFi network to a PC and viewed via the graphing tool or can be exported to Excel.

The software installed on the PC will allow set up, data logging and data review. Set up features will include data logger name, °F/°C, sample rate, and high/low alarms.

The RF314-TC is a low powered battery device. When configured using typical transmission periods (e.g. once every 5 minutes) the data logger will operate for over one year. The battery can then be recharged via a PC or by mains power using the RF320/US power supply unit, which is available as an accessory.

New Cloud Service allows for receiving email alerts and viewing data remotely.

Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013
Type of Sensor: Accepts Type K, J, T or N Thermocouple
Temperature Sensing Range: –454°F ~ 2372°F (–270°C ~ 1300°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F or °C
Min/Max Memory: Yes
Weight: 0.6 lb
Calibration Available: Yes (purchased separately)
Battery Life: 6 Month Charge
Battery Backup: Yes - Must Purchase Option Power Supply
Special Notes: Factory Supplied Thermocouple Has Reduced Temperature Rating
Number of Sensors: ONE
Data Points: > 1 Million
Exportable Data: Yes
Recording Rate: User Programmable
Display: LCD
Requires Software: Yes (for initial network setup)
Software Type: Windows
Network Connectivity: WiFi
Transmission Rate: User Programmable
  • WiFi Data Logger
  • Low-Cost K"K Thermocouple Sensor ( limited range )
  • Software Free Download
  • Rechargeable Battery
  • Wall-Mount Clip
  • Instructions
  • Expert Technical Support
It's good practice to notify your IT Department with your intention to use this product.
