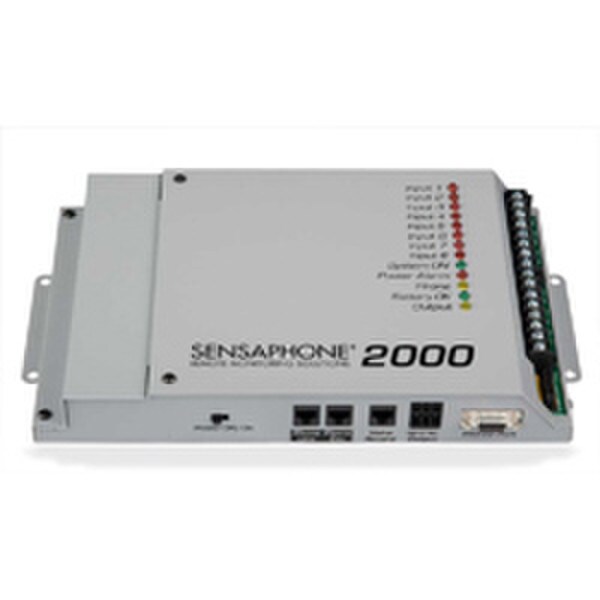

Model 2000 Data Logging
The Model 2000 is an eight-channel system with some very unique and powerful features. The eight inputs are universal and can accept either dry contact sensors, thermistors, 4-20 mA transducers, and even pulse count devices. Instead of a local keypad for programming and status, the 2000 includes free Windows=compatible software for your PC for easy point-and-click access. One of the main reasons that the 2000 is so popular with our customers is its data logging capabilities. It can store 32,000 time stamped records internally that can be retrieved either locally or remotely. The stores data can then be analyzed and graphed for a detailed view of the trends at your site. When you have multiple remote sites that you need to monitor, the Model 2000 makes it easy. If you dedicate a PC that is running the 2000 software, you can use the PC to automatically retrieve and maintain the monitoring status and history information for all of the remote sites. You can program a polling schedule for the PC to follow when collecting data so that all of the data from the remote sites are always available from that single PC. You can even have the PC create web pages from the retrieved data so you can view status history from a web page anywhere in the world. In addition to all of the data and software features in the Model 2000, it also has enhanced notification capabilities. The 2000 is sophisticated enough to allow notification scheduling so you can have alarms call you at the office during the day, at your house at night, and to your cell phone on the weekends. In addition to making custom voice phone calls, the Model 2000 can send text messages to an alphanumeric pager or cell phone, and can even send messages directly to a fax machine. A total of 32 people can be notified by the Model 2000 in case of an alarm.
- Part Number: SNPALM002
- Dialing Parameters: Programmable call list for each input
- Call Progress Monitoring: Detect dial tone busy signals and ringback
- Programmable time between calls: 30 seconds to 60 minutes
- Destinations: 32 Destinations 32-digit phone numbers 4-character email addresses Programmable 24x7 call schedule for each destination
- Inputs: 8 Universal Inputs & 1 AC Power
- Normally Open/Normally Closed dry contact pulse count run time accumulator compatible with 2.8K or 10K thermistors 4-20mA current loop or 0-5V DC analog 10 bit resolution
- Communication Methods: Programmable Voice Fax Cell phone/Alpha Pager Text Message Numeric Pager Email and Web Page
- Custom Voice Messages: 8 Input messages (4 seconds each) 1 site ID message (6 seconds each)
- Data Logging: 32000 records (each with time and date stamp)
- Selectable Logging Interval: 1 second to 200 hours
- Select Channels to Log: Inputs 1-8 AC Power Backup Battery Voltage
- Communication Ports: RS-232 port for local programming DB25 female DCE and 38400 bps
- Built-in Fax/Modem: Data throughout 14400 bps 14400 bps Fax
- Protocols: V.32bis V.32 V.22bis V.22A/B V.23 V.21 Bell 212A & 103
- Local LED Indicators: Inputs 1-8 Alarm Status Power Alarm Phone Battery Ok
- Power Requirements: External Transformer 120VAC 60 Hz 10W (UL-listed power supply) (6) C-cell rechargeable Ni-Cad or NiMH batteries (Not included)
- Output relay: 1
- Operating Humidity Range: 32°F - 122°F (0°C50°C)
- Humidity: 0-90% RH non-condensing
- Size: 12.1"W x 7.2"H x 1.6"D
- Shipping Weight: 3 lbs.
