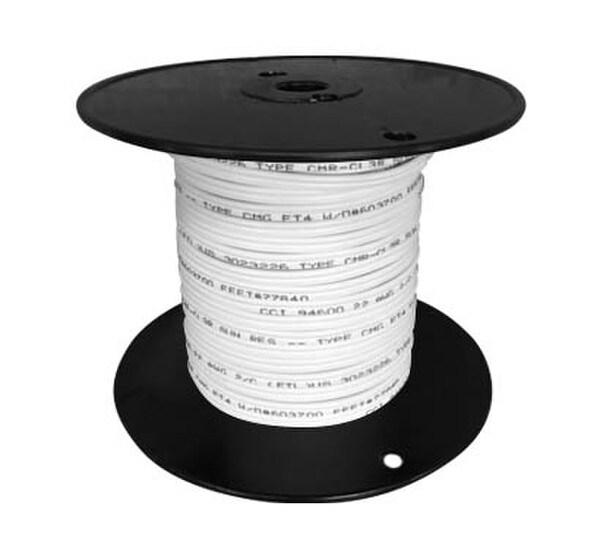

Two Conductor PVC Copper Extension Wire.

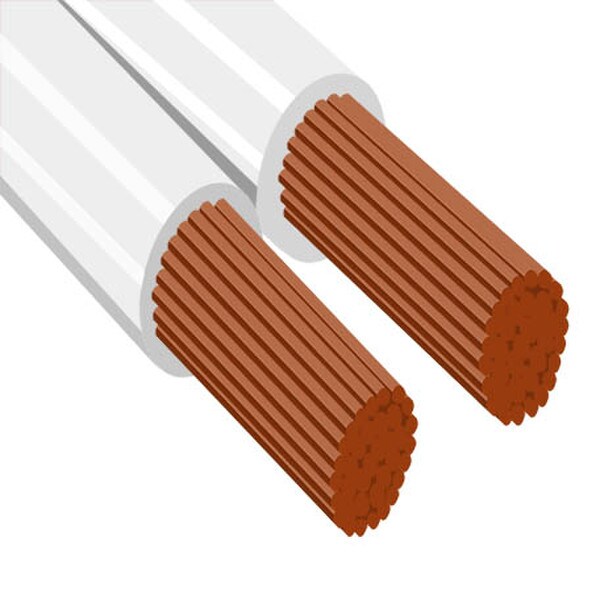

This cable consists of two bare copper conductors stranded, laid flat with an integral PVC insulation jacket. The white PVC jacket is rated for -4°F ~ 140°F (-20°C ~ 60°C)
- Part Number TIPWRU021
- Conductor : 22 AWG Bare
- Stranded : Copper 7/30
- Insulation Material: PVC
- Insulation Thickness: 0.022'' Nom.
- Insulated Cable Dimensions: 0.073" x 0.156" Nom.
- Number of Conductors: (2) two
- Approximate Cable Weight: 9.0 Lbs/1M' Nom.
- Flame Rating: UL 1666 Riser Flame Test
- Temperature Rating: -20°C to 60°C
- Operating Voltage: 300 V RMS Max.
- Extension wire 2 conductor, copper stranded
- Cut to your required length and priced per foot.
- Expert Technical Support
