🧰 Replacement Sensor for T&D Loggers

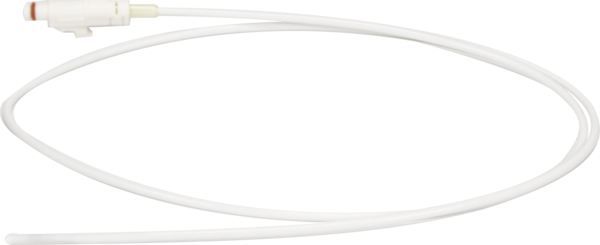

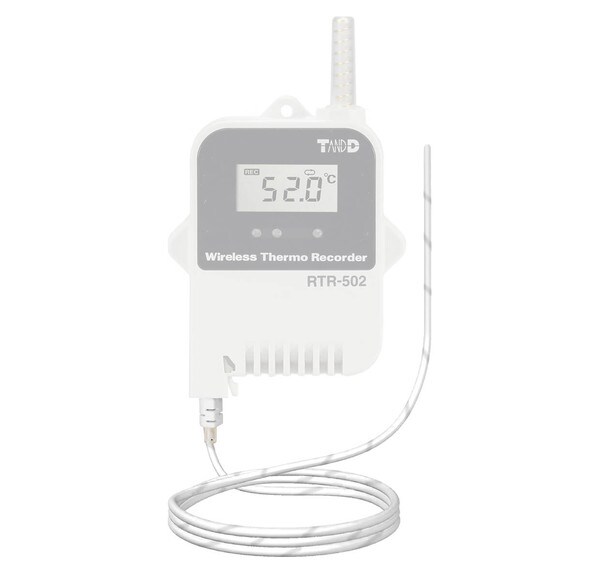

This TR-5106 replacement temperature sensor is designed for compatible T&D RTR-502, RTR-502L, and TR42 temperature data loggers. It provides a wide measurement range from -76°F to 311°F (-60°C to 155°C) with accuracy that varies by temperature range.
The 24-inch (0.6 m) fluoropolymer-coated sensor cable is splash resistant and provides faster response in agitated water than in air. It can replace an existing sensor or be kept as a spare to help minimize downtime in critical temperature monitoring applications.
──────────────────────────
Ideal Applications
📈 T&D data logger maintenance
❄️ Refrigerator and freezer monitoring
🧪 Laboratory temperature monitoring
🏭 Industrial temperature applications
📦 Temperature-sensitive storage
🌡 Wide-range temperature monitoring
🛠️ Replacement and preventive maintenance
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -60°~155°C / -76°~311°F |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Calibration Available: | Yes (purchased separately) |
| IP Rating: | IP64 |
──────────────────────────
Compliance & Risk Mitigation
🎯 Defined accuracy supports measurement confidence
⏱️ Response specifications aid sensor placement
💧 Splash protection supports appropriate environments
🧰 Correct sensor helps ensure logger compatibility
🛠 Spare sensors can reduce monitoring downtime
⚖️ Annual calibration supports validation
Use only with compatible T&D RTR-502, RTR-502L, and TR42 data loggers. Measurement accuracy varies across the sensor's operating range, and splash-proof construction should not be interpreted as suitable for unrestricted immersion. Verify sensor placement and environmental requirements for the application. Where documented measurement validation is required, annual calibration of the complete logger and sensor system is recommended to confirm continued accuracy and proper operation.
