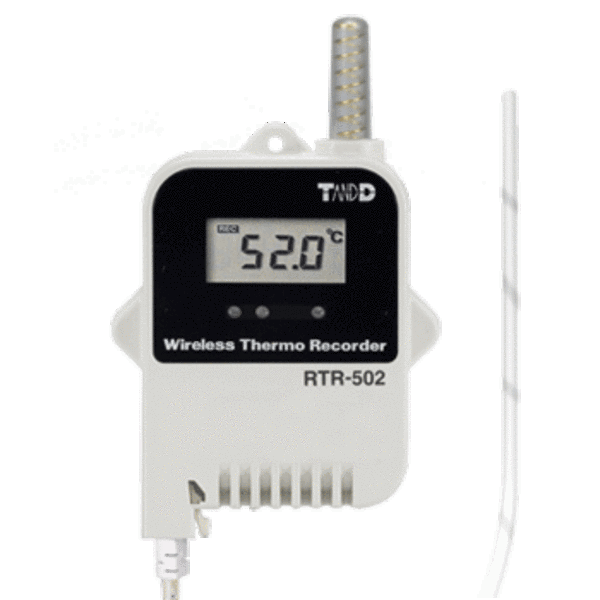

RTR-502 Wireless Temp Logger
Equipped with an external temperature sensor, the RTR-502 features the highest waterproof and dust-proof capability. This is the perfect Data Logger for use in harsh environments: whether that may be indoor frozen or refrigerated storage or high humidity, high dust outdoor applications. Moreover, the compact lightweight design means it can be placed just about anywhere.
The RTR-500 Series Data Loggers are equipped with built-in wireless communication capability. The RTR-501, RTR-502, and RTR-503 are compact and durable data loggers featuring waterproof and dust-proof construction. The RTR-574 is a data logger designed to simultaneously measure and record Luminance, UV light, Temperature, and Humidity. The RTR-500 Series Data Loggers are equipped with built-in wireless communication capability. The RTR-501, RTR-502, and RTR-503 are compact and durable data loggers featuring waterproof and dust-proof construction. The RTR-574 is a data logger designed to simultaneously measure and record Luminance, UV light, Temperature, and Humidity.The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following "Base Unit" or "HandHeld Unite" with which to carry out wireless communication.
The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -76°F ~ 311°F (-60°C ~ 155 °C) |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Sensor Wire Length: | 24 inches |
| Dimensions: | H 62mm x W 47mm x D 19mm |
| Weight: | 56g (including 1 lithium battery) |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | Approx. 10 months |
| Battery Backup: | Yes - Must Purchase Option Power Supply |
| IP Rating: | 67 |
| Special Notes: | Approx. 150 meters (500 ft) if direct and unobstructed |
| Number of Sensors: | ONE |
| Data Points: | 16,000 |
| Exportable Data: | Yes |
| Recording Rate: | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. |
| Display: | LCD |
| Requires Software: | YES |
| Software Type: | Windows 10, 8, 7 (32-bit and 64-Bit Versions) |
| Network Connectivity: | Wireless LAN, USB |
| WIFI Network Compatibility: | NO |
- RTR502 Data Logger with External Sensor
- Battery
- Instructions
- Strap
- Expert Technical Support
- View Datasheet for TADREC005
- View Quick Spec Sheet for TADREC005
- View Datalogger Brochure for TADREC005
Accuracy:
Avg.±0.3 °C (-20 to 80 °C)
Avg.±0.5 °C (-40 to 20 °C / 80 to 110 °C)
Avg.±1.0 °C (60 to 40 °C / 110 to 155 °C )
