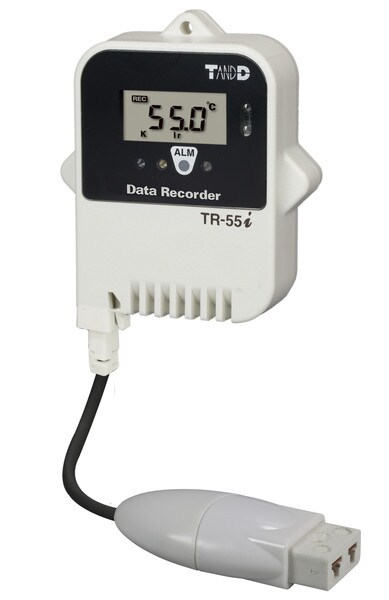

Waterproof Data Logger Thermocouple Input
Our TR-55i Series data loggers are designed to measure and record temperature, voltage, 4-20mA, or pulse count. The body of the data loggers are water resistant and can be used in an environment of -40°C to 80°C. Moreover, battery-powered operation means the loggers can be placed anywhere without the need for AC power.
Depending on the model type, the TR-55i can measure and record temperature, voltage, 4-20mA, or pulse count. The body is water resistant when the Input Module is connected.
Note: Input Module is not water resistant.
- Part Number: TADREC043
- Measurement Channel:
Temperature - Unit of Measurement:
°C °F - Measurement Range:
-199 to 1700°C - Measurement Accuracy:
±0.3°C + 0.3% rdg [Type K J T]
±1.0°C + 0.3% rdg [Type S] - Measurement Resolution:
0.1°C [Type K J T]
0.2°C [Type S] - Dimensions: 62mm x 47mm x 19mm
- Selectable recording intervals from 1 second to 60 min
- 14 Month Battery Life
- Thermocouple Data Logger
- Instruction Manual
- Strap
- Expert Technical Support
K: -199 ~ 1300 °C (-326.2 ºF ~ 2,372ºF)
J: -199 ~ 750 °C (-326 ºF ~ 1,382 ºF)
T: -199 ~ 400 °C (-326 ºF ~ 752 ºF)
S: -20 ~ 1700 °C (-4 ºF ~ 3,092 º F)
Water Resistance: IP64 (Splash-Proof)
J: -199 ~ 750 °C (-326 ºF ~ 1,382 ºF)
T: -199 ~ 400 °C (-326 ºF ~ 752 ºF)
S: -20 ~ 1700 °C (-4 ºF ~ 3,092 º F)
Water Resistance: IP64 (Splash-Proof)
