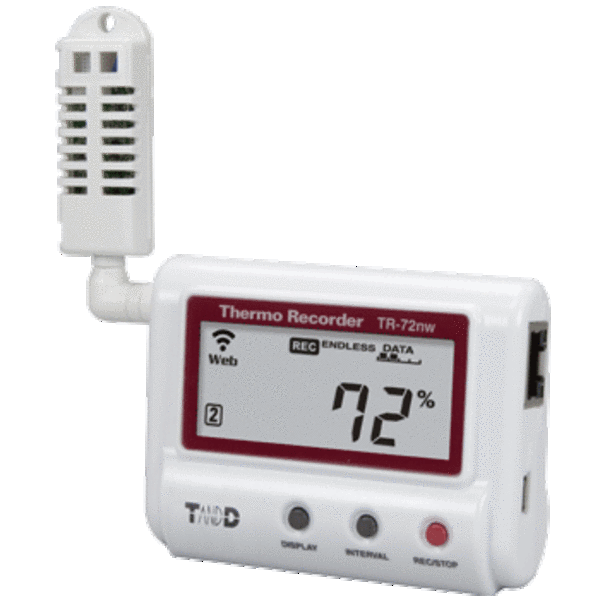

Wired LAN Temperature & Humidity Logger
The TR-72nw Wired LAN temperature and humidity data logger is a two channel model with an external Thermistor sensor. The most distinguishing feature of TR-72nw is its auto upload function which automatically uploads recorded data from the logger to our free cloud service. It enables the viewing of uploaded data on your mobile device or PC anytime, anywhere.
Try our new data loggers and take a step into the new world of cloud storage...you won't want to go back.
Features
Ethernet LAN Communication for Setup and Data Download
USB Communication with PC for Setup and Data Download
Battery-Powered Operation; No Cables Necessary
Logging Capacity of 8,000 Data Sets
| Type of Sensor: | Thermistor / Polymer Resistance |
| Temperature Sensing Range: | 32°F ~ 131°F (0°C ~ 55°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Humidity Range: | 10 ~ 95 %RH |
| Humidity Accuracy: | ±5 %RH at 25°C, 50%RH |
| Humidity Resolution: | 1% |
| Dimensions: | H:58mm × W:78mm × D:26mm |
| Weight: | 55g |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | Approx. 10 days to 1.5 years |
| Data Points: | 8,000 |
| Recording Rate: | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. |
| Software Type: | Current Windows Ver required for setup / installation. Any Web Browser to Manage Data, Reports, Alarms, etc. |
| Network Connectivity: | Ethernet |
- Wired LAN Temp / Humidity Data Logger
- Instruction Manual
- (2) AA Batteries
- Expert Technical Support

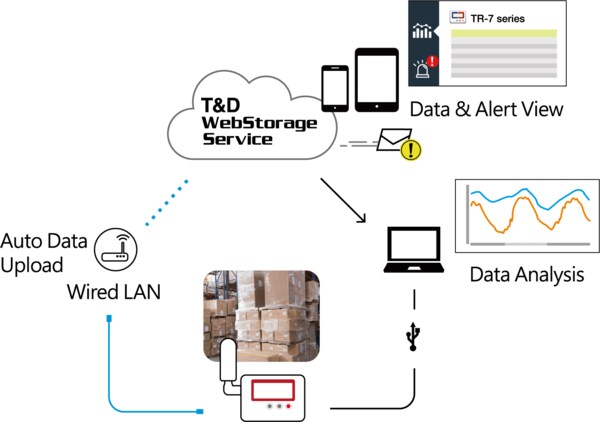

The TADREC074 uses a wired ethernet LAN access point to auto-upload recorded data and warning notifications to the free cloud-based "T&D Webstore Service". Use the mobile app “T&D Thermo” to check data from your smartphone or tablet and use Bluetooth communication to make settings, download recorded data, and create reports. To make settings from and download data via USB to a PC, use our Windows software “TR7 for Windows”. Windows software “T&D Graph” makes it easy to view and analyze data from your PC.
