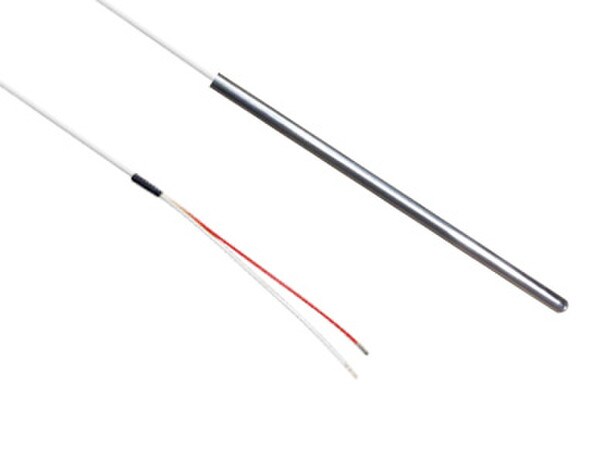

RTD Temperature Sensor 1000Ω, 2-Wire
1000 Ohm Bullet Probe Sensor, 10 Ft. Leads
RTD, 1000 ohm, 2 core teflon cable, 3/16 od tube 3" long, (one RED one WHITE, lead) no transition.
RTD15-1000-SS-316-3-TT-24-120
Operating Range: -55°F to 212°F (-48°C to 100°C)

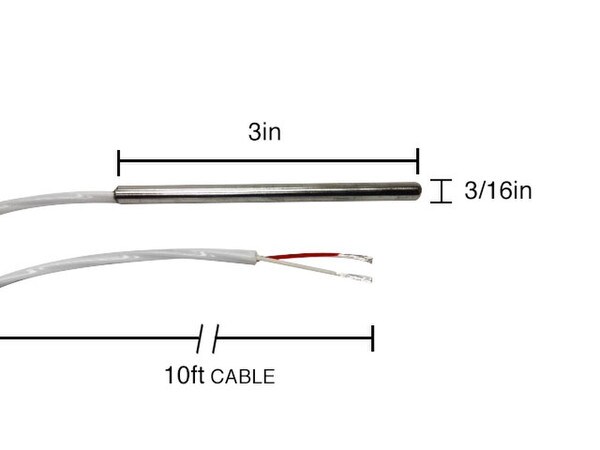

Sensor dimensions: 0.1875" diameter, 3" long
Sensor connection: 10ft, teflon insulated leadwire
RTD, 1000 ohm, 2 core teflon cable, 3/16 od tube 3" long, (one RED one WHITE, lead) no transition.
RTD15-1000-SS-316-3-TT-24-120
Operating Range: -55°F to 212°F (-48°C to 100°C)
Sensor dimensions: 0.1875" diameter, 3" long
Sensor connection: 10ft, teflon insulated leadwire
| Type of Sensor: | RTD / Pt 1,000 Ω |
| Temperature Sensing Range: | -55°F ~ 212°F (-48°C ~ 100°C) |
| Sensor Dimensions: | 120" Teflon Lead Wire |
| Dimensions: | Wire Construction: 24ga. stranded Shielded Max O.D. 0.13" |
| Weight: | .15 |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 3" |
| Wire Material: | Teflon |
| Wire Length: | 10' |
- (1) RTD Sensor 1000Ω
- 10 Ft. Lead Wire attached
- Expert Technical Support
