⚪ RTD 1/4" Dia. , 100Ω, 14" Length

(0)No Reviews yet
$104.25
QuantityPrice
1 – 9$104.25
10 – 24$99.04
25 – 49$93.83
50 – 74$88.61
75 – 99$86.01
100 +$83.40
SKU: TIPRTD032P10

Industrial-grade platinum RTD probe with quick-disconnect wiring

Quick Specs

🌡 Temperature Range: -58°F to 500°F (-50°C to 260°C)
🔍 Resolution: RTD 100Ω (Pt100)
🔩 Sheath Material: Stainless Steel
📏 Sheath Diameter: 0.250" (1/4")
📐 Sheath Length: 14"
🔌 Connector: Standard Plug & Jack (Quick Disconnect)
⚡ Max Temperature: 500°F
🧪 Sensor Type: RTD (Pt100)

📦 Browse the related products below, explore compatible RTD instruments, extension wire, compression fittings, and mounting accessories that integrate seamlessly with this sensor.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Notable Features

Back

✅ Platinum 100Ω RTD for stable, repeatable measurements
✅ 1/4" stainless steel probe for industrial durability
✅ 14" insertion length for ducts, tanks, and process monitoring
✅ Quick-disconnect plug & jack simplifies installation and service
✅ Compatible with RTD instruments accepting Pt100 inputs

RTD10-100L-SS-14-14

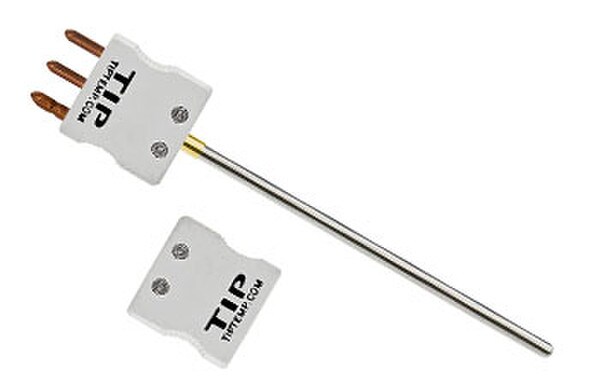

Quick disconnect PT100 sensor, stainless steel sheath 1/4" dia. x 14" long below 3 pin male plug, supplied with mating jack.

Back
Temperature Sensing Range: -58 ~ 500°F (-50 ~ 260°C)
Thermocouple Type: RTD
Sheath Material: Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 14 inches
Plug Size: Standard
Jack Size: Standard
Max Temp: 500°F
Number of Measuring Points: 1
Back
  • (1) Quick Disconnect RTD Sensor
  • (1) Mating Jack
Back
  1. Plug RTD Sensor into RTD Thermomter or Patch Cord
