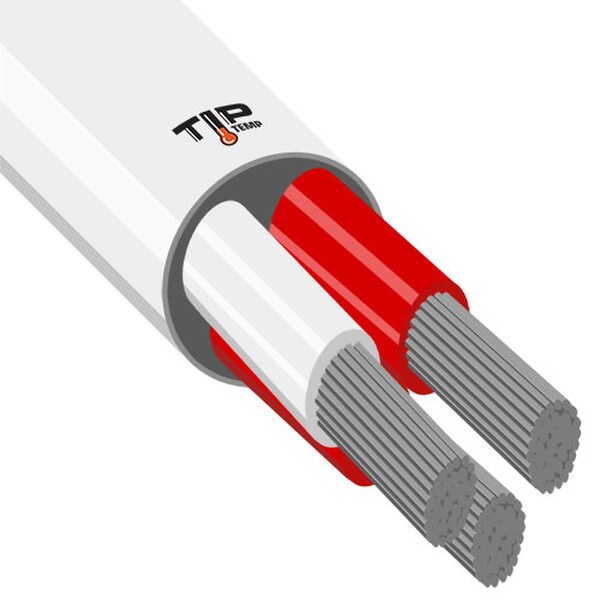

⚪ 3-Conductor RTD Twisted FEP Wire
✅ 3-conductor design ideal for 3-wire RTD configurations
✅ Tin-plated copper conductors for corrosion resistance
✅ FEP insulation rated to 400°F (204°C)
✅ Twisted construction helps reduce electrical noise
✅ Flexible stranded design for easier routing
✅ Durable white FEP outer jacket
✅ ANSI color-coded for quick identification
──────────────────────────
RTD extension wire (tinned copper); 3 conductor; stranded; 24 gauge, twisted, Teflon insulation color code 2 red and 1 white outside jacket is white. Teflon FEP is rated at max 400°F / 204°C
This specification covers a three-conductor cable, Tin Plated Copper, 24 awg stranded (7/32), insulated with FEP. Singles
are twisted together and jacketed with FEP. Color code: 2 Red, 1 White, White jacket.
- Conductor:
Material: Tin Plated Copper
Size: 24 Awg Stranded
Stranding: 7 strands of 32 awg concentric lay
Nominal OD: .024” - Insulation:
Material: Extruded FEP, 400°F
Nominal Wall: .008”
Nominal OD: .040”
Color: 2 Red, 1 White - Cable:
Pairs: 3 twisted singles
Nominal Lay Length: 3.0” Left Hand Lay
Nominal OD: .086” - Jacket:
Material: Extruded FEP, 400°F
Nominal Wall: .010”
Nominal Diameter: .106”
Color: White
- Type "RTD" 3 conductor wire 2 RED and 1 WHITE
- Cut to your required length and priced per foot.
- Expert Technical Support
