RTD Temperature Sensor 100Ω
RTD15-100H-SS-316-2-TT-24TS

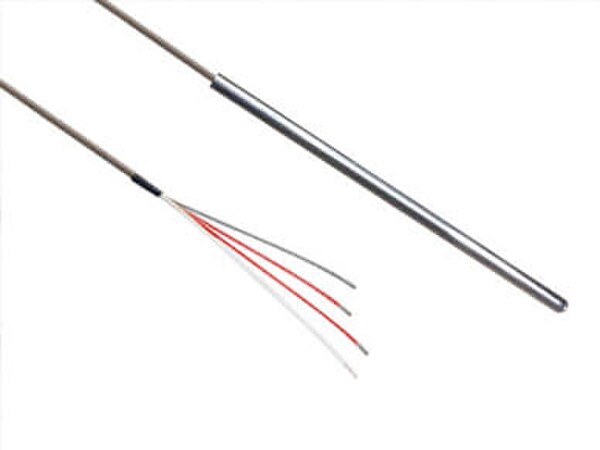

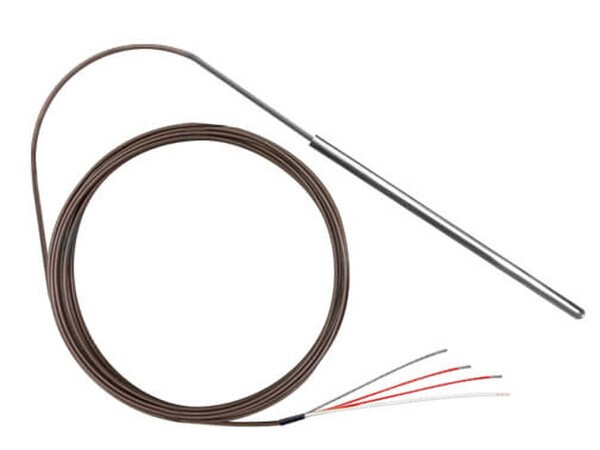

RTD, 100 ohm, 3 wire, 3/16" diameter, stainless steel tube, 2" long with 36" of teflon 22 gauge stranded twisted/shielded wire, with drain wire.
RTD, 100 ohm, 3 wire, 3/16" diameter, stainless steel tube, 2" long with 36" of teflon 22 gauge stranded twisted/shielded wire, with drain wire.
| Type of Sensor: | RTD |
| Temperature Sensing Range: | -328°F ~ 1202°F (-200 ~ 650°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Weight: | .05 |
| Calibration Available: | Yes (purchased separately) |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 2" |
| Transition Diameter: | .375 |
| Wire Material: | Teflon |
| Wire Gauge: | 22 Ga. |
| Wire Length: | 36" |
