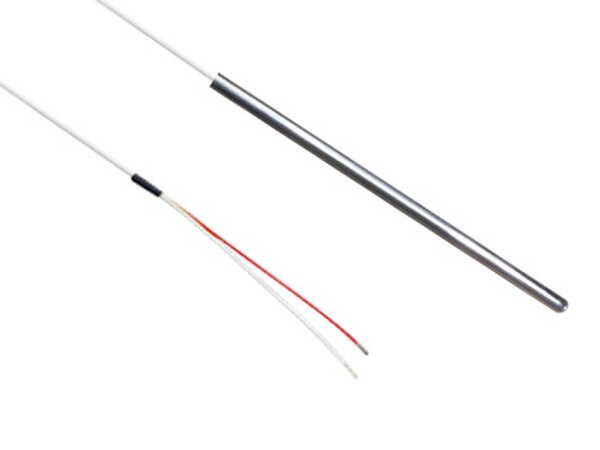

Cryogenic RTD Temp Sensor 100 Ohm
RTD15-100-CRYO-SS-14-1.5-TT-120-6
Class "B" RTD 100 OHM Cryo assembly, 3 wire,
stainless steel sheath, 1/4" dia x 1.5" long with
10ft White Teflon insulated lead wire. Internal
wires to be 1 x White, 2 x Red white overall.
Low Temperature RTD Sensor (-200ºC) NO TRANSITION
| Temperature Sensing Range: | -324°F ~ 302°F (-198 ~ 150°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 1.5" |
| Wire Material: | Teflon |
| Wire Length: | 10 ft |
Cryogenic RTD Temperature Sensor 100Ohm
Expert Technical Support
Expert Technical Support
- Place probe in desired area to measure temperature.
- Wire the three leads into the designated meter/transmitter input to read the measured temperature. Consult your device's wiring diagram for specific wiring instructions.
