Industrial Style TC, Type K Ungrounded
TC1-K-SS-14-U-120

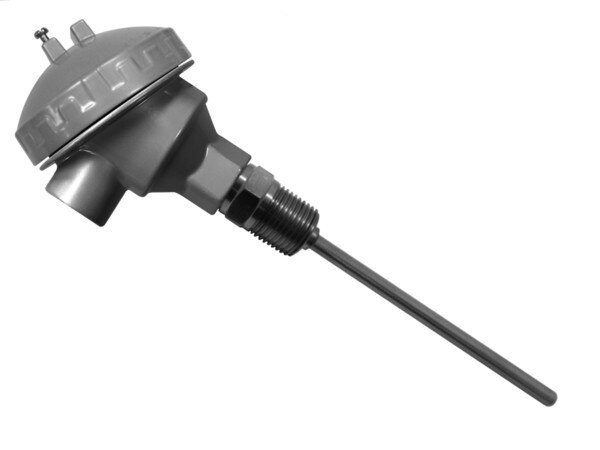

Industrial Style Thermocouple
Head mount, type K thermocouple, stainless steel sheath, 1/4" dia. x 120" long below 1/2" NPT male thread directly below die cast aluminum head. Sensing junction ungrounded. Response Time: 3.75 seconds or greater
Probe provided COILED
Industrial Style Thermocouple
Head mount, type K thermocouple, stainless steel sheath, 1/4" dia. x 120" long below 1/2" NPT male thread directly below die cast aluminum head. Sensing junction ungrounded. Response Time: 3.75 seconds or greater
Probe provided COILED
| Type of Sensor: | Thermocouple |
| Temperature Sensing Range: | 32°F ~ 2300°F (0°C ~ 1260°C) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.250 |
| Sheath Length: | 120 inches |
| Max Temp: | 2,300°F |
| Response Time: | 3.75 seconds or greater |
| Number of Measuring Points: | 1 |
- Industrial Style K Thermocouple, Coiled Probe
- Expert Technical Support
