"K" Thermocouple Transition Assembly
Details

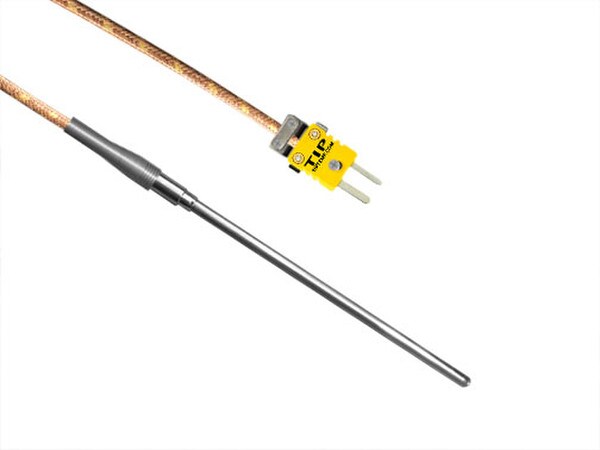

Thermocouple assembly, type "K" ( +Chromel / -Alumel), 316 stainless steel tube, 3/16" dia, grounded junction, 24" long, 24 gage 36" fiberglass leads with mini plug and cable clamp and potting sleeve with spring relief.
TC16-K-SS-316-G-24-GG-24-36-MM-CC-PS-Spring
TC16-K-SS-316-G-24-GG-24-36-MM-CC-PS-Spring
Specs
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | 316 Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 24" |
| Transition Diameter: | .375" |
| Transition Length: | ¾" |
| Wire Material: | Fiberglass |
| Wire Gauge: | 24 |
| Wire Length: | 36" |
| Plug Size: | Miniature Plug |
