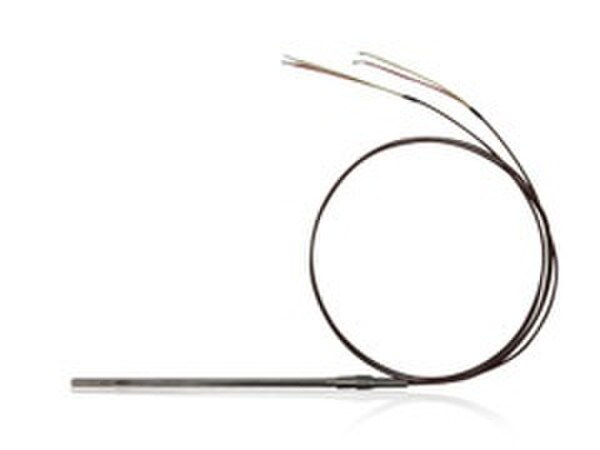

🟡 Type K Dual Transition Thermocouple

$121.45
QuantityPrice
SKU: TIPTCK476
Provided: Each
HTC16-KK-IN-14-UU-8-SSOB/GG-24-32-4”leads
See the "SUPPORT" Tab on How To Customize This Probe

High-Temperature Duplex Inconel Probe with Dual Type K Elements

──────────────────────────

Quick Specs

🌡 Thermocouple Type: 🟡 K • Dual / Duplex

🔥 Max Temperature: 1832°F (1000°C)

🧮 Sensor Circuits: 2 Independent Type K Elements

🛡️ Sheath Material: Inconel

📏 Sheath Size: 1/4" Dia. × 8" L

⚙️ Junction: Ungrounded • Insulated / Isolated

🧵 Lead Wire: 24 AWG Stranded Fiberglass

🛡️ Lead Protection: Stainless Steel Overbraid

📐 Lead Length: 32" • 4" Stripped Ends

🔥 Transition: High-Temperature Cement Filled

──────────────────────────

Compliance & Risk Mitigation

🛡 Inconel sheath protects sensing elements

🧮 Dual circuits provide two sensor signals

⚙️ Isolated junction reduces electrical effects

🔥 Cement transition supports high-temp use

🧵 Overbraid protects flexible lead wires

🌡 Supports high-temperature monitoring

Verify probe temperature limits, insertion requirements, wiring polarity, and instrument compatibility before installation. Actual service life and usable temperature may depend on the process environment and installation conditions.

──────────────────────────

Related Items & Spare Parts

🟡 Type K thermocouple instruments

🧵 Type K thermocouple extension wire

🔌 Type K plugs, jacks, and connectors

🧰 Compression fittings and probe hardware

⚙️ Temperature controllers and indicators

📈 Dual-channel data loggers and instruments

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

📋 Customization: See the SUPPORT tab for information on customizing this thermocouple probe.

──────────────────────────

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

24 Gage Stranded Fiberglass with stainless steel overbraid leads 32" long with 4"" stripped insulated / isolated ungrounded junction. Transition filled with High Temp Cement"

Notable Features

2℃ AccuracyCalibrationNewSpecial OrderThermocoupleTT Verified
Back

High Temp 1000°C Application
HTC16-KK-IN-14-UU-8-SSOB/GG-24-32-4"strip leads

This transition-style dual Type K thermocouple provides two independent temperature-sensing circuits within one rugged 1/4" Inconel sheath. Designed for high-temperature applications up to 1832°F (1000°C), it features an insulated, isolated ungrounded junction and fiberglass-insulated lead wires protected by stainless steel overbraid. The high-temperature cement-filled transition provides added protection where the probe transitions to the flexible leads.

──────────────────────────

Ideal Applications

🔥 High-temperature process monitoring

🏭 Furnaces and industrial ovens

⚙️ Manufacturing and process equipment

🧪 Laboratory and test applications

📈 Dual-channel temperature monitoring

🛡️ Harsh industrial environments

🔧 OEM equipment and machinery

Back

Customize your Thermocouple Probe using the link below.
