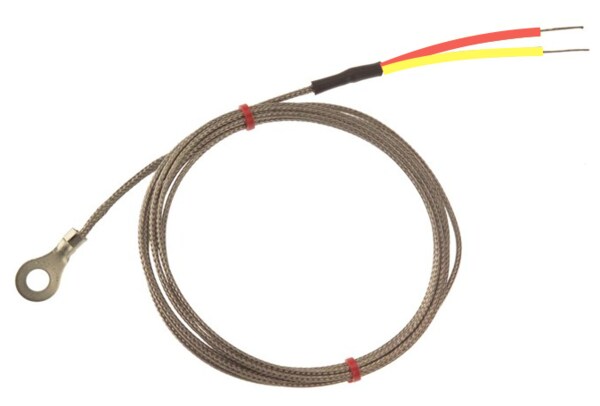

🟡 “K” Washer Bolt-On Thermocouple

(0)No Reviews yet
$48.37
QuantityPrice
2 – 9$48.37
10 – 24$45.95
25 – 49$43.53
50 – 74$41.11
75 – 99$39.91
100 +$38.70
SKU: TIPTCK490

Surface-mount washer-style thermocouple for direct metal contact sensing.

Quick Specs

🌡 Temperature Range: 32°F to 900°F (0°C to 482°C)
🌡 Max Temperature: 900°F (482°C)
🎯 Accuracy: ±4°F (±2°C) typical
🟡 Thermocouple Type: K
🔩 Mounting: Washer bolt-on • 1/4" screw size
🔩 Sensor Material: Stainless steel washer
🧵 Lead Wire: Stainless Steel Overbraid Fiberglass insulated
📏 Cable Length: 48" with stripped leads

📦 Browse the related products below, explore similar instruments, compatible sensors, and suggested accessories that integrate with this model.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Notable Features

Back

Details

Key Features

✅ Washer design ensures solid thermal contact
✅ Ideal for motors, bearings, and heated surfaces
✅ High-temperature fiberglass insulation
✅ Simple bolt-on installation with standard hardware
✅ Durable for industrial environments

WTC-G-14-GG/SSOB-48-K-6 Type K grounded washer thermocouple, 1/4" screw size washer, fitted with 48" inch glass insulated cable with stainless steel overbraid and stripped tails.

Back

Specs

Type of Sensor: Thermocouple
Temperature Sensing Range: 32°F - 900°F (0°C - 482°C)
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Thermocouple Type: Thermocouple
Wire Material: Fiberglass
Wire Length: 48"
