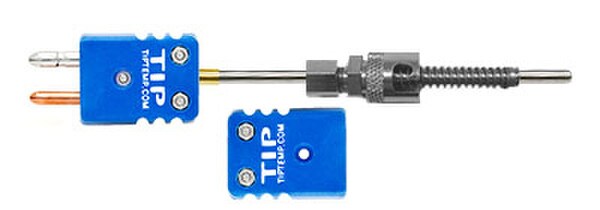

“T” Thermocouple with Adjustable Bayonet Fitting
Rugged stainless-steel Type T probe with quick-mount bayonet fitting for fast, reliable surface or equipment temperature measurement.
Quick Specs
🌡 Temperature Range: –319 to 698°F (–195 to 370°C)
🎯 Accuracy: Typical ±2°F (±1°C)
⚙️ Thermocouple Type: Type T (Copper-Constantan)
🔩 Sheath Material: Stainless Steel
📏 Sheath Diameter: 0.125 in (1/8 in)
📐 Sheath Length: 8 inches
🧷 Junction Type: Grounded for fast response
🔧 Fitting: Adjustable Bayonet Lock (1/8" Spring-Loaded)
🔌 Connector Type: Large Plug and Jack Style
🔥 Max Temp: 698°F (370°C)
🧾 Model Code: TC10-T-SS-18-G-8-ABF-18
Key Features
✅ Adjustable bayonet mount ensures secure, repeatable placement
✅ Grounded junction delivers rapid thermal response
✅ Stainless-steel sheath resists corrosion and mechanical stress
✅ Type T accuracy for low-to-mid temperature applications
✅ Perfect for molding machines, dies, and industrial equipment
