🧰 304 SS Straight Thermowell
This straight thermowell provides a protective barrier between a temperature sensor and the process being measured. Constructed from 304 stainless steel, it allows a compatible temperature probe or sensor to be installed, serviced, or replaced while providing mechanical protection from the process environment.

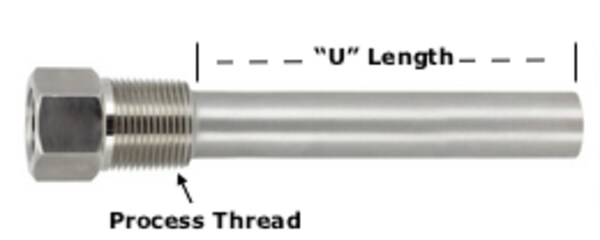

The thermowell features a 4" U-length, 0.260" bore, 1/2" process thread, and 1/2" internal instrument thread.
──────────────────────────
Ideal Applications
🌡 Temperature sensor installations
🏭 Industrial process equipment
⚙️ Tanks and process vessels
🔥 Heating and process systems
💧 Liquid temperature measurement
🧪 Laboratory and test equipment
🔧 Serviceable probe installations
Compliance & Risk Mitigation
🛡️ Protects sensors from process exposure
🔧 Allows easier sensor replacement
🧱 Stainless steel provides corrosion resistance
📏 Correct insertion supports measurement response
🔩 Proper threading helps maintain installation integrity
🌡 Correct probe fit supports heat transfer
⚠️ Verify process compatibility before installation
Verify the thermowell's material, bore, U-length, process connection, pressure and temperature requirements, fluid compatibility, and sensor dimensions before installation. Thermowell suitability depends on the specific process conditions, including pressure, temperature, flow velocity, vibration, and media. The thermowell itself does not require calibration; calibration requirements apply to the temperature sensor and measuring system installed with it.
──────────────────────────
