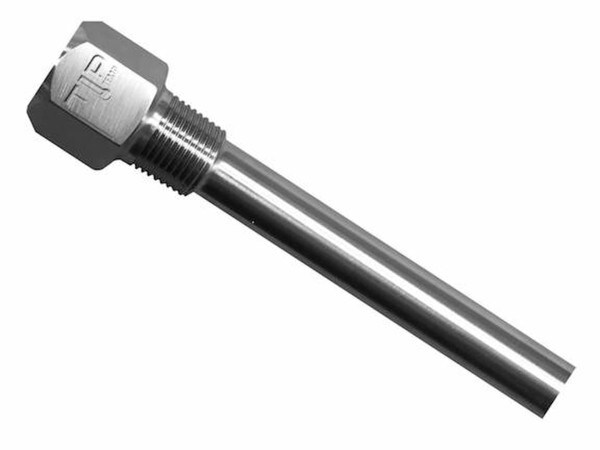

🧰 304 SS Straight Thermowell
This straight thermowell provides mechanical protection for a compatible temperature sensor while isolating it from direct process exposure. Constructed from 304 stainless steel, it is suitable for thermocouple or RTD installations where sensor protection and convenient replacement are required.
The thermowell features a 4.5" U-length, 0.260" bore, 1/2" process thread, and 1/2" internal instrument thread.
──────────────────────────
Ideal Applications
🌡 Thermocouple and RTD installations
🏭 Industrial process equipment
⚙️ Tanks, vessels, and piping systems
🔥 Heating and process equipment
💧 Liquid temperature measurement
🧪 Laboratory and test systems
🔧 Serviceable temperature sensor installations
Compliance & Risk Mitigation
🛡️ Protects sensors from direct process exposure
🔧 Allows easier sensor removal and replacement
🧱 304 stainless steel provides corrosion resistance
📏 Correct insertion supports measurement response
🔩 Proper threading supports installation integrity
🌡 Correct probe fit supports heat transfer
⚠️ Verify process conditions before installation
Verify thermowell material, bore, U-length, process and instrument connections, sensor dimensions, process media, temperature, pressure, flow velocity, and vibration requirements before installation. Thermowell suitability depends on the specific process conditions. The thermowell itself does not require calibration; calibration requirements apply to the temperature sensor and complete measurement system installed with it.
──────────────────────────
