CUSTOM 4 Conductor RTD Twisted Shielded Wire
Details

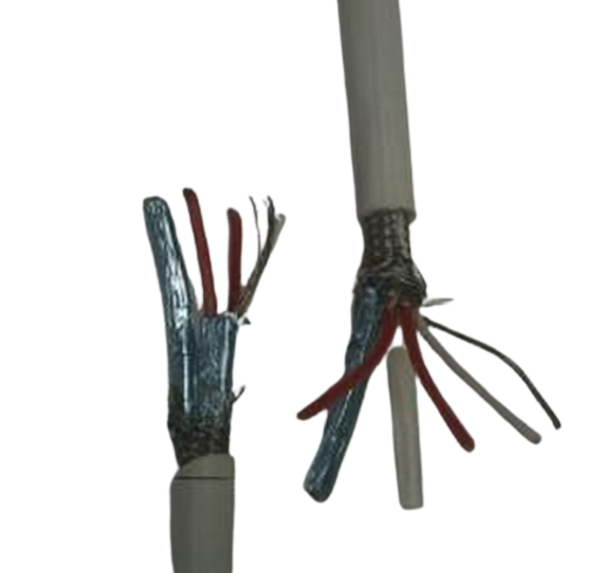

Description: RTD cable in 1,000 ft put ups, 22 ga. stranded, 2 triads each with 2 RED, 1 WHITE, 1 DRAIN, and foil shield. Triads laid side by side (not twisted),with SSOB and PFA teflon overwrap.
Technical Spec: Gauge: 22 awg stranded (7/30)
Number of conductors: 2 Triad 6 conductors
Type: Tin Plated Copper
Primary Insulation: 8 Mil Extruded PFA Teflon
Construction: Conductors twisted and sheilded with 24 awg drain and numbered nomex tape. Two triads run parallel with tin copper overbraid.
Overall Jacket: 15 Mil extruded PFA Teflon
Temperature rating: Continous 500°F (260°C)
Nominal O.D.: 0.260"
ANSI Color Code: Singles: Red, Red, White
Jacket: White
