⚪ 3-Conductor Twisted RTD Wire

$1.80
QuantityPrice
25 – 99$1.80
100 – 249$1.71
250 – 499$1.62
500 – 999$1.53
1000 +$1.44
SKU: TIPWRU016
Provided: Feet

⚡ RTD Wire – Precision You Can Trust

Reliable RTD extension wire engineered for stable, low-noise sensing.

Quick Specs

  • 🌡 Temperature Range: −328°F to 392°F (−200°C to 200°C)
  • ⚪ Insulation: FEP (Teflon) jacket
  • 🧮 Conductors: 3-conductor RTD cable
  • 🔌 Wire Gauge: 22 AWG stranded
  • 🛡️ Construction: Twisted, shielded, with drain wire
  • 📏 Sold As: Per foot

Related Items & Spare Parts

🌡 3-wire RTD temperature probes

⚙️ RTD-compatible temperature controllers

📈 RTD data loggers and recorders

🔌 RTD connectors and terminal blocks

🧰 Compression fittings and mounting hardware

⚖️ RTD system calibration services

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 810

Notable Features

BusinessRTDSparePartSpecial OrderTT Verified
Back

This 3-conductor RTD wire is designed for connecting RTD temperature sensors to compatible instrumentation, controllers, transmitters, and data acquisition systems. The 22 AWG stranded conductors provide flexibility for installation, while the twisted, shielded construction with drain wire helps reduce electrical interference that can affect low-level temperature signals.

FEP insulation provides a broad operating temperature range from -328°F to 392°F (-200°C to 200°C) for demanding temperature measurement applications.

Ideal Applications

🌡 3-wire RTD temperature sensors

⚙️ Temperature controllers and transmitters

📈 Data loggers and acquisition systems

🏭 Industrial process temperature monitoring

🧪 Laboratory and test equipment

🔌 Electrically noisy installations

❄️ Low-temperature measurement applications

🔥 Elevated-temperature environments

Back
  • Part Number XWRTD-3CU-22s-T-TT / TIPWRU016

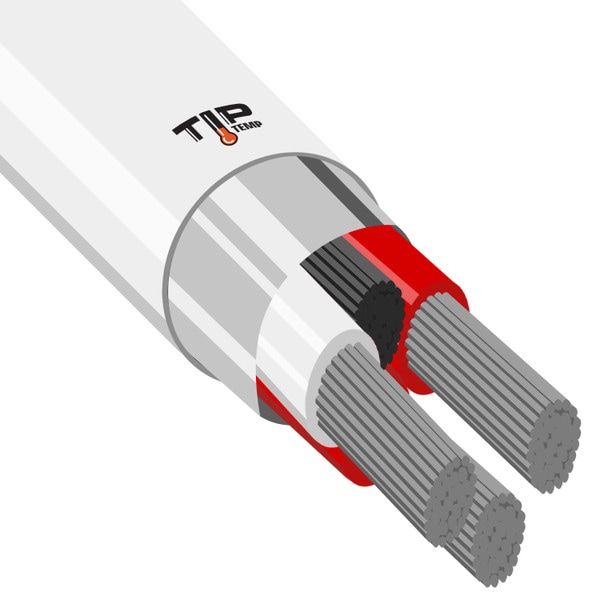

  • 3 Conductor TinnedCopper Teflon over each conductor twisted w/ Mylar Shield and Drain
  • Wire Type "RTD" Wire Overall Teflon Jacket, 22 Ga. Stranded, FEP Teflon
  • Jacket -328 ~ 392°F / -200 ~ 200°C
Back
  • Type "RTD" 3 conductor wire 2 RED and 1 WHITE with Mylar Shield and drain wire
  • Cut to your required length and priced per foot.
  • Expert Technical Support
Back

Compliance & Risk Mitigation

🛡️ Shielding helps reduce electrical interference

🔄 Twisted conductors support signal integrity

🧮 Three-wire design supports RTD compensation

🔌 Drain wire supports proper shield termination

🌡 Verify sensor and instrument compatibility

🔥 Observe FEP temperature limitations

🔧 Protect cable from mechanical damage

This cable is intended for compatible RTD measurement circuits. Verify conductor configuration, instrument requirements, shielding/grounding practices, installation environment, and temperature limits before use. The wire itself does not require calibration; where documented measurement validation is required, annual calibration of the complete RTD measurement system is important for confirming continued accuracy and proper operation.

Back
