⚪ 4-Conductor White Teflon RTD Wire

(0)No Reviews yet
$1.99
QuantityPrice
25 – 99$1.99
100 – 249$1.76
250 – 499$1.67
500 – 999$1.57
1000 +$1.48
SKU: TIPWRU019
Provided: Feet

High-stability RTD extension wire for accurate temperature sensing

Quick Specs

  • 🔩 Conductors: 4-conductor RTD wire

  • 🔧 Wire Gauge: 22 AWG (stranded)

  • 🧵 Jacket: White Teflon FEP

  • 🌡 Temperature Rating: Max 400°F / 204°C

  • 🎯 Accuracy: ±0.6°F (±0.3°C) typical

  • 🧲 Construction: Twisted, shielded, with drain wire

  • 📏 Sold As: Per foot

  • 🆔 TIPTEMP P/N: XW-4CU-22S-TT-TS

  • 🧾 SKU: TIPWRU019

📦 Browse the related products below, explore compatible RTD sensors,
protective sheaths, and connection accessories that integrate seamlessly.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 2000

Notable Features

Back

✅ Four-conductor design supports precise RTD measurements
✅ Stranded conductors for improved flexibility and durability
✅ Twisted-shielded construction reduces electrical noise
✅ Integrated drain wire for proper grounding
✅ Teflon FEP jacket resists heat, chemicals, and abrasion

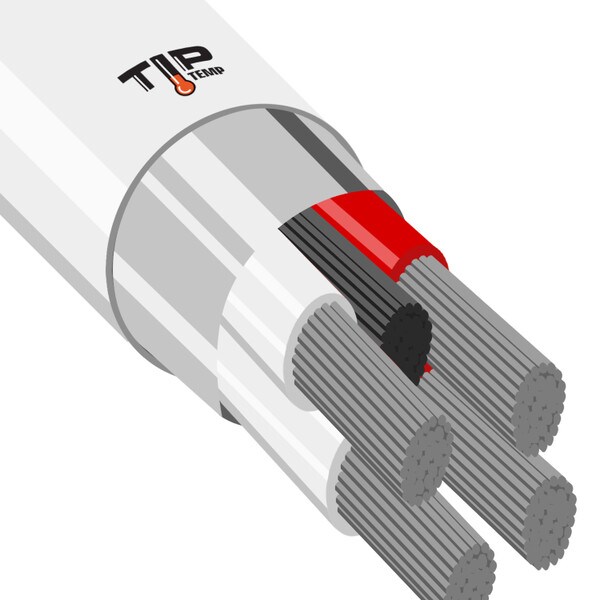

Four Conductor 22S ga. Stranded Teflon Wire
XW-4CU-22S-TT-TS, 4 Teflon insulated cores, 2 x Red and 2 x white, twisted, shield with drain wire with overall Teflon insulation. Max outside dimension 0.190". Teflon FEP Insulation Max Temperature 204°C / 400°F

Back
Temperature Accuracy: +/- 0.6°F (+/- 0.3°C) typical
Special Notes: 2 Red, 2 White Wires, Twisted, Shielded with Drain
Sold As: Feet
Thermocouple Type: RTD
Wire Material: Teflon
Wire Gauge: 22awg Stranded
Max Temp: 400f (204C)
Back
  • Type "RTD" Four conductor wire 2 RED and 2 WHITE
  • Cut to your required length and priced per foot.
