⬜⬛ Non-Reversible 8-Level Temp Label

$32.81
QuantityPrice
1 – 9$32.81
10 – 24$31.17
25 – 49$29.53
50 – 74$27.89
75 – 99$27.07
100 +$26.25
SKU: TLCSEN031
Provided: Pack of 10 Pieces

Irreversible 8-Level Indicator for High-Temperature Monitoring

──────────────────────────

Quick Specs

🌡 Temperature Range: 241°F to 309°F (116°C to 154°C)

⬜⬛ Indicator Type: Permanent (Irreversible)

🔢 Temperature Events: 8 Levels

🎨 Color Change: White to Black

📋 Record: Generates Permanent Record of Max Temperature

🏷️ Mounting: Adhesive Backed

📋 Usage: Single-Use

📦 Sold As: Pack of 10 Labels

──────────────────────────

Compliance & Risk Mitigation

🛡 Provides permanent heat exposure evidence

🌡 Identifies maximum temperature reached

⬜⬛ Provides irreversible visual indication

🔢 Eight levels improve temperature assessment

⚙️ Helps identify equipment overheating

📋 Supports maintenance and QA records

This irreversible temperature label provides permanent visual evidence of maximum temperature exposure and should be used as part of an appropriate equipment, process, preventive maintenance, or quality monitoring program.

──────────────────────────

Related Items & Spare Parts

⬜⬛ Alternate-range irreversible temperature labels

⬜⬛ Single-level irreversible indicators

🧪 Reversible labels for current temperature checks

🌡 Contact thermometers for temperature verification

📈 Temperature data loggers for recorded monitoring

⚖️ Calibrated instruments for verification

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

IN STOCK

Current Stock: 6

Notable Features

2℃ AccuracyVisual AlertsBest SellerLabel Ascending1yr Shelf LifeTemperature C/FTT VerifiedWaterProof
Back

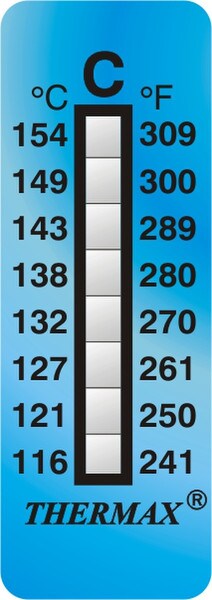

The Non-Reversible 8-Level Temperature Label provides permanent visual evidence of maximum temperature exposure from 241°F to 309°F (116°C to 154°C). As each rated temperature level is reached, the corresponding indicator physically changes from white to black, generating a permanent, irreversible record of the maximum temperature reached. The adhesive-backed design allows the label to be applied directly to equipment, components, and surfaces requiring high-temperature verification.

──────────────────────────

Ideal Applications

🏭 Industrial equipment and machinery

⚙️ Motors, bearings, and mechanical components

🔥 High-temperature process monitoring

🔧 Preventive maintenance inspections

⚡ Electrical and electronic equipment

🧪 Laboratory and testing applications

📋 Equipment troubleshooting and diagnostics

Back
Type of Sensor: Color Change / Ascending
Temperature Sensing Range: 241°F~309°F ( 116°C~154°C )
Temperature Accuracy: +/- 3°F (+/- 1.5°C) typical
Temperature Scale: °F and °C
Dimensions: 2 x 0.7" (51 x 18mm)
Weight: .02
Calibration Available: Certificate of Conformance ( $ Extra )
Sold As: Pack of 10 Pieces
Adhesive: Yes
Storage Conditions: Store in a cool dark place.
Number of Events: 8
Color Change: Permanent
Shelf Life: 12 months
Adhesive Type: 3M
Back
  • (1) Pack of 10 Labels
  • Instructions
  • Expert Technical Support
Back

Back
Irreversible Temperature Labels Instructions for Use Peel indicator from release paper Apply to any clean, grease free surface ensuring that the indicator has adhered to the surface A color change from silver white/orange to black indicates that the temperature has been reached . Store in cool dry place below <64ºF &< 50% relative humidity
