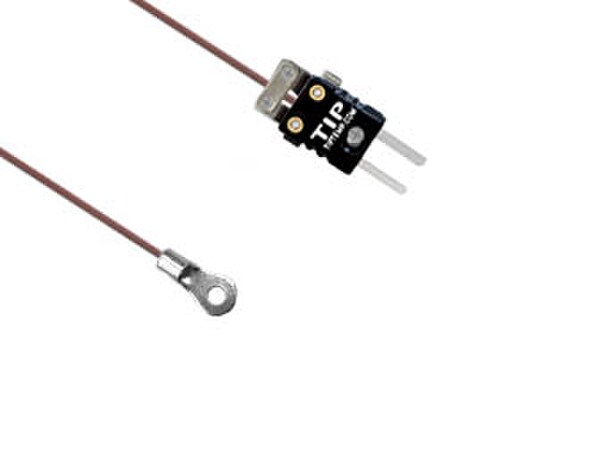

⚫ “J” Washer #8 Bolt-On Thermocouple

(0)No Reviews yet
$49.60
QuantityPrice
2 – 2$49.60
3 – 5$47.12
6 – 9$44.64
10 – 49$42.16
50 – 99$39.68
100 +$37.20
SKU: TIPTCJ334
Provided: Each

Surface-mount washer thermocouple for fast, reliable contact sensing

──────────────────────────

Quick Specs

🌡 Temperature Range: Up to 500°F / 260°C
⚫ Thermocouple Type: J (Iron + / Constantan –)
📏 Washer Size: #8 screw • 3/8" OD • 1/8" ID
📐 Washer Thickness: 0.038"
🔩 Junction: Grounded
🧵 Wire Gauge: 24 AWG
🧪 Insulation: Teflon (rated to 500°F / 260°C)
📏 Wire Length: 60" (5 ft)
🔌 Termination: Mini thermocouple plug attached
🧲 Polarity: White (+, magnetic) / Red (–)

──────────────────────────

📦 Browse the related products below to find compatible Type “J” meters, panel indicators, and extension accessories that integrate seamlessly with this sensor.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

IN STOCK

Current Stock: 4

Notable Features

Back

✅ Washer-style sensor bolts directly under fasteners for true surface contact
✅ Ideal for motors, heaters, bearings, plates, and housings
✅ Grounded junction delivers fast thermal response
✅ High-temperature Teflon insulation for durability and chemical resistance
✅ Mini plug allows direct connection to Type “J” instruments
✅ Compact profile installs without altering equipment geometry

──────────────────────────

WTC-8-TT-60-J-3
Type J grounded washer thermocouple, #8 screw size washer, fitted with 60" inch Teflon 24ga insulated cable and mini plug.

Back
  • Type J Washer Thermocouple
  • 24 awg 60 inch Teflon insulation
  • Teflon is rated at max 500°F / 260°C
  • (White ) Iron + / (Red) Constantan ( White Wire is Magnetic )
  • Thickness = 0.038"
  • Outside Diam = 3/8"
  • Inside Dia. = 1/8" I.D. or # 8 screw
  • Mini Plug
  • Grounded Junction
Back
  • 1 x 60-inch Type J Washer Thermocouple with Mini Plug
  • #8 Screw Size Washer
  • Expert Technical Support
Back
  • Attach to process, Plug into instrument that is programmed to accept type "J" Thermocouple.
  • Other questions please contact a TIPTEMP Thermal Advisor.
