Dual Channel Thermocouple Data Logger with Graphic LCD Display and Audible Alarm
Dual Channel Thermocouple Data Logger with Graphic LCD Display

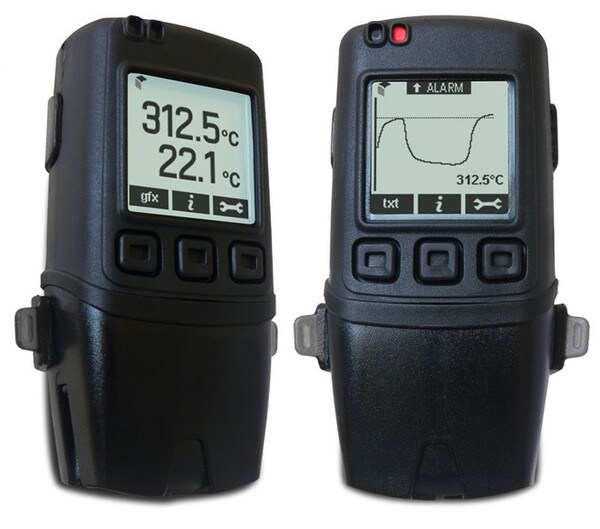

Using external thermocouple probes to measure temperatures from -200 to +1350°F with resolution of 0.1°C, standalone EL-GFX-DTC can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
Note: We show two accuracies to differentiate type "T" and type "K" Thermocouples. "T" ( Blue) is more accurate. "K" ( Yellow ) is most common.
Using external thermocouple probes to measure temperatures from -200 to +1350°F with resolution of 0.1°C, standalone EL-GFX-DTC can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
Note: We show two accuracies to differentiate type "T" and type "K" Thermocouples. "T" ( Blue) is more accurate. "K" ( Yellow ) is most common.
| Type of Sensor: | Thermocouple |
| Temperature Sensing Range: | -328°F ~ 2462°F (-200°C ~ 1350°C) |
| Operating Temperature Range: | -10 to +40°C (+14 to +104°F) |
| Temperature Accuracy: | ±1°C (±2°F) (thermocouple error not included) |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | Yes |
| Dimensions: | 4.01 ” x 1.90 ” x 1.20 ” |
| Weight: | .5 |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | Typical 1 Year |
| IP Rating: | IP 67 |
| Sampling Rate: | 2 seconds - 1 hour |
| Special Notes: | Audible and Visual Alarm |
| Number of Sensors: | Two Inputs |
| Data Points: | 250,000+ |
| Exportable Data: | Yes |
| Display: | LCD |
| Requires Software: | YES |
| Software Type: | Windows 10, 8, 7 (32-bit and 64-Bit Versions) |
| Network Connectivity: | USB |
| WIFI Network Compatibility: | N/A |
| Thermocouple Type: | Thermocouple |
- Dual Channel Data Logger with Graphic LCD Display
- (2) General Purpose Low Cost thermocouples. (Call to discuss other styles.)
- Micro USB Cable and Mounting Clip
- (2) 1/2 "AA" Lithium Batteries
- PC Compatible Software (Free Download )
- Expert Technical Support
- Specifications & Data Sheet
- Software Download instructions
- Software Download
- View Complete List of High Accuracy Data Loggers
- View Complete List of LASREC Data Loggers
- Using type "T" Thermocouples Improves Accuracy. Speak with a Thermal Advisor.
