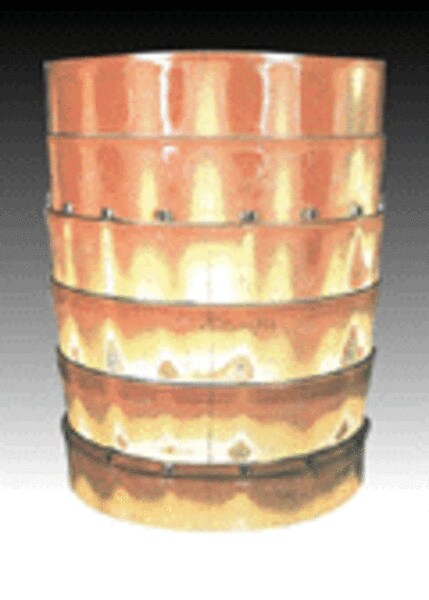

MC215-6 Multi Change Paints 6 Color Changes
1st temp change is from Purple to Pink after 5 min @ 390°C/734°F
2nd temp change is form Pink to Cream 5 min @ 490°C/914°F
3rd temp change is from Cream to Blue 5 min @ 610°C/1,130°F
4th temp change is from Blue to Grey 5 min @ 890°C/1,634°F
5th temp change is from Grey to Matt Black 5 min @ 1,020°C/1,868°F
6th temp change is from Matt Black to Matt Black Glaze 5 min @ 1,050°C/1,922°F
If the paint is not used for a number of months it may start to dry out. It can be re-vitalized by mixing in a PMA paint solvent.
| Type of Sensor: | Thermal Paint |
| Temperature Sensing Range: | 734°F ~ 1922°F (390°C ~ 1050°C) |
| Dimensions: | 1 Liter |
| Weight: | 2.75 |
| Sold As: | 1 Liter |
| Data Points: | 6 Temperature Changes |
- (1) Liter of Multi-Change Paint
- Typical Delivery 3-4 Weeks ARO
- MC215-6 MSDS Sheet
- MC215-6 Technical Data Sheet
- Estimated highest temperature the paint can be subject to without a color change is 120°C
- 1st Coat touch dry in 15 -50 minutes. Allow a min. of 20 minutes before test
Apply to a blast cleaned and degreased surface; no primer is necessary. Apply one coat, allowing to touch dry for 15-30 minutes. The best thermal mapping is achieved by an even coat of paint. The preferred application method is spraying. The paint may be thinned to spraying viscosity by the further addition of thinners. Removal of the paint can be achieved by using solvents or an abrasive disc.
Q: The technical data sheet lists the coverage area as "6", what unit of measure is this? meters?
A: 6 square metres per litre applied by brush is a good guide
Q: Is there a recommended depth/thickness for a coat of paint?
A: Normally, 60 - 80 microns is a good guide
Q: Can it be recoated over itself?
A: Yes, as long as the surface is pitted / rust-free and cleaned to allow the new coating to adhere fully and smoothly
Q: Is there a preferred "blast profile" that the surface should be to ensure the best coat?
A: Ideally, this should be taken back to clean blasted metal to gain the best results
