Testing Sample Chiral Nematic Brush On Liquid Crystal

(0)No Reviews yet
Provided: 10 Gram Bottle
77°F ~ 86ºF ( 25°C ~ 30°C )

Special Order: Terms & Conditions Apply.

Notable Features

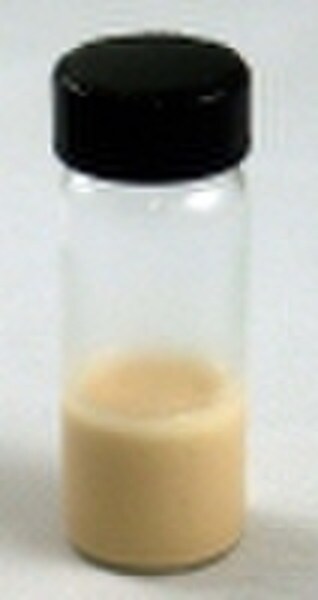

Testing Sample TLCSEN510 is 10 grams of micro-encapsulated slurry with three main reflection colors. RED-GREEN-BLUE. Custom Manufactured to reflect color change between 25°-30°C

We ONLY OFFER range 25°C ~ 30°C Slurry for testing purposes.

All slurries within the product's temperature range are manufactured to order and with minimum quantites. Please call to discuss further.  The slurries are tailor-made to each customer's requirement, for example, color change properties, microcapsule diameter distribution and solids content. For most common applications where average capsule diameters are between 10 and 100 microns, the preferred solids content is 40%, but products with higher and lower solids levels can be made.

ThermoChromic Liquid Crystals are aqueous, acrylic-based and designed for brush on application. They have good adhesion to most surfaces. Mat and gloss finishes are achievable by varying the coating thickness.
Type of Sensor: Chemical
Temperature Sensing Range: 77°F ~ 86ºF ( 25°C ~ 30°C )
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Scale: °F and °C
Weight: 0.1
Calibration Available: Certificate of Conformance ( $ Extra )
Sold As: 10 Gram Bottle
Adhesive: No
Storage Conditions: Ambient
Color Change: Reversible
Shelf Life: 12-18 Months
  • (1) 10 Gram Bottle
  • Instructions

Slurries need to be applied to surfaces after the black backing paint (TLCSEN509) is applied and dried.

RED-GREEN-BLUE. Custom Manufactured to reflect color change between 25°-30°C.

All slurries are manufactured to order. They can be tailor-made to customer requirements of, for example, color change properties, micro-capsule diameter distribution and solids content.
