Reversible Thermochromic Sheets Sample Pack

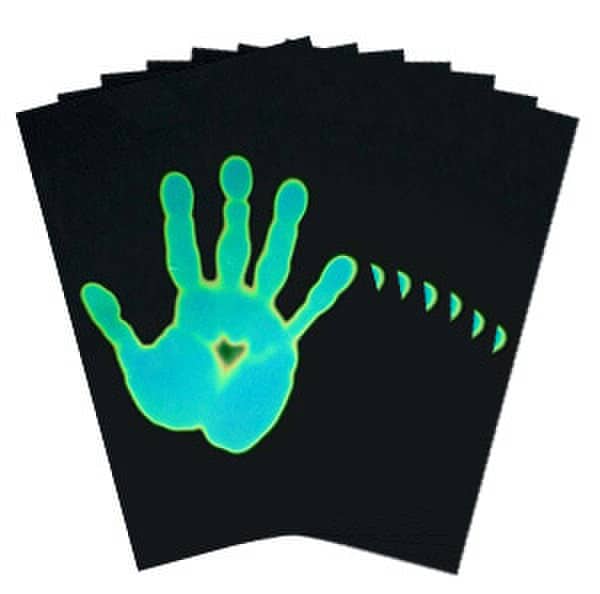

Thermochromic sheets made out of polyester (mylar) that use microencapsulated liquid crystal color changing inks to indicate a specific temperature or range. Liquid crystal mylar sheets with adhesive backing can be cut to any size. With a fast response time, these temperature sensitive sheets provide a quick visual indication of temperature gradients. Color Changes as temperature increases, the color of the sheets changes from black to red, red to green, green to blue, and finally to black again.
Included the following sheets
Visit Temperature Labels 101 to learn how these simple sensors work.
Included the following sheets
- (1) 6X12" 68°F ~ 77°F Thermochromic Sheet
- (1) 6X12" 77°F ~ 86°F Thermochromic Sheet
- (1) 6X12" 84°F ~ 91°F Thermochromic Sheet
- (1) 6X12" 86°F ~ 95°F Thermochromic Sheet
- (1) 6X12" 95°F ~ 97°F Thermochromic Sheet
- (1) 6X12" 95°F ~ 104°F Thermochromic Sheet
- (1) 6X12" 104°F ~ 113°F Thermochromic Sheet
Visit Temperature Labels 101 to learn how these simple sensors work.
| Type of Sensor: | Liquid Crystal / Reversible |
| Temperature Sensing Range: | 68 ~ 113°F ( 20 ~ 45°C ) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Dimensions: | 6" x 12" |
| Weight: | .1 |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Sold As: | Pack of 7 |
| Adhesive: | No |
| Color Change: | Reversible |
- (1) 6X12" 68°F ~ 77°F Thermochromic Sheet (TLCSEN484)
- (1) 6X12" 77°F ~ 86°F Thermochromic Sheet (TLCSEN485)
- (1) 6X12" 84°F ~ 91°F Thermochromic Sheet (TLCSEN537)
- (1) 6X12" 86°F ~ 95°F Thermochromic Sheet (TLCSEN444)
- (1) 6X12" 95°F ~ 97°F Thermochromic Sheet TLCSEN445)
- (1) 6X12" 95°F ~ 104°F Thermochromic Sheet (TLCSEN477)
- (1) 6X12" 104°F ~ 113°F Thermochromic Sheet (TLCSEN446)
