⬜⬛ SMART QR WarmMark TTI 46°F

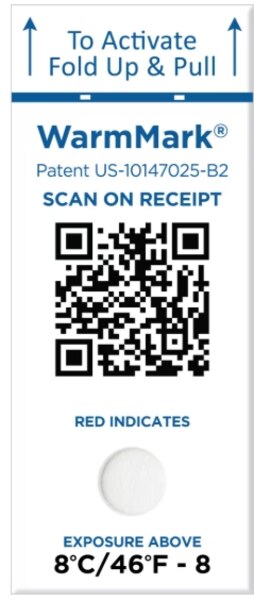

The SMART QR WarmMark® is a hand-activated, single-use time-temperature indicator designed to monitor unacceptable temperature exposure above 46°F (8°C) during shipping, storage, and handling.

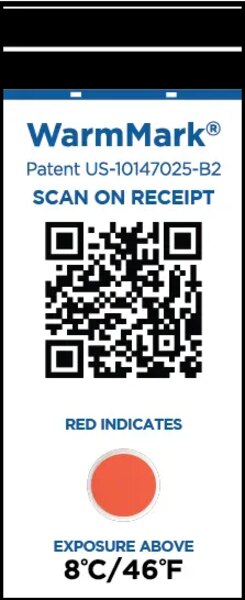

Once manually activated, the indicator begins monitoring the product or shipment. If the temperature rises above 46°F (8°C), the indicator progressively changes from white toward pink/red based on the accumulated time above the temperature threshold. It can indicate up to 8 hours of cumulative exposure above 46°F (8°C).
The 8-hour rating refers to the exposure-tracking range. It does not mean the indicator is only usable for eight hours after activation.
The integrated SMART QR feature allows personnel to scan the indicator with a compatible smartphone to associate sensor information with time, date, location, and serial number, supporting shipment documentation and quality review.
──────────────────────────
Ideal Applications
💊 Pharmaceutical distribution
🧬 Biologics and life science products
🚚 Cold chain transportation
📦 Temperature-sensitive shipments
🏥 Medical and healthcare supplies
🍎 Perishable food distribution
🧪 Laboratory materials and samples
| Type of Sensor: | Chemical / Time Temperature |
| Temperature Sensing Range: | Activates Above 8°C/46°F |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | No |
| Dimensions: | L x W x thickness 4.6 x 1.9 x 0.15 cm (1.81 x 0.75 x 0.06 in.) |
| Weight: | 0.0025 lb. |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Storage Conditions: | Room Temperature / Cool / Dry |
| Number of Events: | Single Event: 8 Hrs. |
| Color Change: | Permanent |
| Shelf Life: | 1 Year from Date of Sale |
| Adhesive Type: | 3M |
- WarmMark Gen 1 MSDS
- WarmMark QR Gen 1 Instructions
- WarmMark Gen 1 Sales Sheet
- WarmMark Pharmacy Shipping Label
──────────────────────────
Compliance & Risk Mitigation
🌡 Identifies exposure above 46°F (8°C)
⏱️ Tracks accumulated exposure up to 8 hours
📋 Creates permanent visual evidence
📱 QR scanning improves shipment traceability
☁️ Digital records support excursion review
🔋 Battery-free design reduces maintenance
WarmMark® QR provides visual and digital evidence to support cold-chain monitoring, shipment investigations, and quality programs. The indicator must be manually activated before use and tracks accumulated exposure above 46°F (8°C) for up to 8 hours. The 8-hour rating is the exposure-tracking range and does not mean the indicator expires eight hours after activation. Confirm that the temperature threshold and exposure duration are appropriate for the product being monitored.

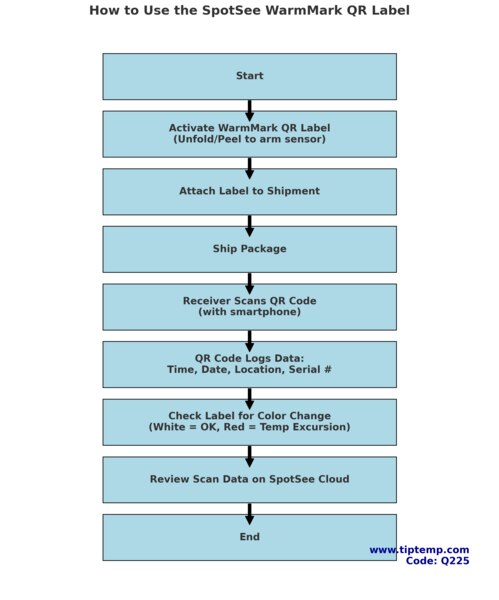

Arming & Use:
1. *The WarmMark breach window should be white prior to arming the device.
2. Before arming, the WarmMark indicator should be placed in an environment at least 5°C (9°F) below the WarmMark’s activation threshold temperature for a minimum of 30 minutes. (For WarmMark Duo, the indicator should be at least 5°C (9°F) or cooler for a minimum of 30 minutes.)
3. Recipient scans QR code with smart phone to access condition information
4. Real-time scan data is sent to the cloud for shipper review
