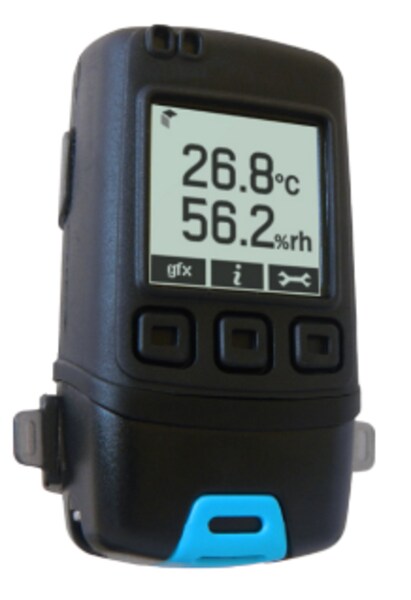

High Accuracy Temperature and Relative Humidity Data Logger with Graphic LCD Display
High Accuracy Temperature and Relative Humidity Data Logger with Graphic LCD Display
Using internal probe to measure temperatures from -22 to +176°F with resolution of 0.1°C, standalone EL-GFX-2 can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
Using internal probe to measure temperatures from -22 to +176°F with resolution of 0.1°C, standalone EL-GFX-2 can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -22°F ~ 176°F (-30°C ~ 80°C) |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Humidity Range: | 0 to 100%RH |
| Humidity Accuracy: | 2.05%RH typical (20 to 80%RH) |
| Humidity Resolution: | 0.1%RH |
| Min/Max Memory: | Yes |
| Weight: | .4 |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | Depending on Sampling Rage 1 Year |
| IP Rating: | IP 67 |
| Sampling Rate: | Every 10 sec to Every Hour |
- High Accuracy Data Logger
- Micro USB Cable
- Mounting Clip
- (2) 1/2 "AA" Lithium Batteries
- PC Compatible Software (Download)
- Expert Technical Support
| How to Set Up Logger Video | How to Use Logger Video |
 |  |
