WiFi Temperature & Humidity Data Logger

(0)No Reviews yet
1 – 9$184.49
10 – 24$175.27
25 – 49$166.04
50 – 74$156.82
75 – 99$152.20
100 +$147.59
Provided: Each
-4°F ~ 140°F (-20°C ~ 60°C) 20 ~ 80%rH
FREE Software Download
  • Rechargeable Battery ( last for 6 months )
  • Transmits Email and Text Message Alerts
  • Includes Wall Mount Bracket & USB Programming Cable
  • Optional Power Supply
  • Expert Technical Support


Current Stock: 2

Notable Features

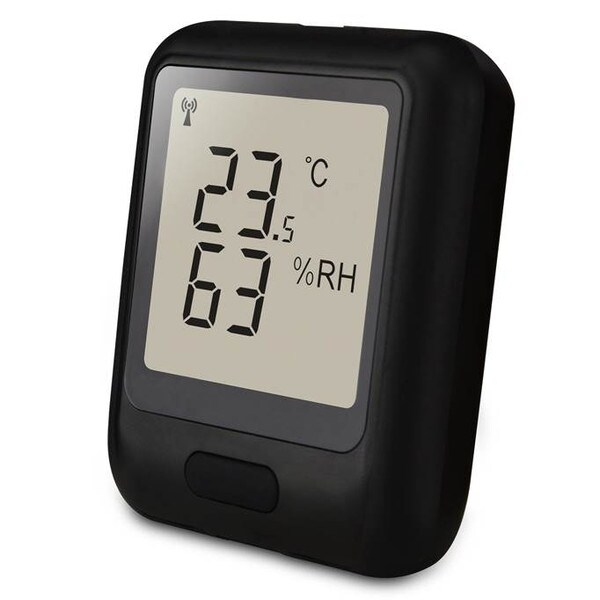

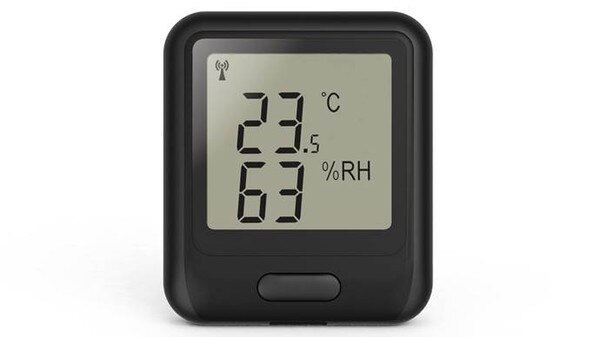

The EL-WiFi-TH data logger measures the temperature and humidity of the environment in which it is situated. Data is transmitted wirelessly via a WiFi network to a PC and viewed using a free software package. During configuration the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 60 days at 10 second sample interval). The range of the sensor can be increased by using WiFi extenders.

This EL-WiFi-TH is a low powered battery device. When configured using typical sampling periods (e.g. once every 60 seconds) the sensor will operate for over one year. The battery can then be recharged via a PC or USB +5V wall adapter using the USB lead provided.

The battery is safely charged when the unit is operating between 0 to +40°C (+32 to +104°F). It is protected against charging outside this temperature range. Sensor readings may be inaccurate during battery charging.

The software installed on the PC will allow set-up, data logging and data review. Set-up features will include sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the graphing tool or exported into Excel. This software is available for free from our Support page (link to support/downloads page).

This data logger stands alone by itself on a vertical surface and comes with a wall bracket that can be screwed onto a wall or flat surface. The data logger clips into the bracket.

Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013

Type of Sensor: Thermistor (Internal)
Temperature Sensing Range: -4°F ~ 140°F (-20°C ~ 60°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F and °C
Humidity Range: 20~80%
Humidity Accuracy: 3.0%
Min/Max Memory: Yes
Weight: .45
Calibration Available: Yes (purchased separately)
Battery Life: Rechargeable internal lithium polymer battery
Battery Backup: Yes - Must Purchase Option Power Supply
IP Rating: IP 55
Display: LCD
Requires Software: Yes (for initial setup)
Software Type: Windows
Network Connectivity: WiFi
Transmission Rate: User Programmable
  • WiFi Temp/Humidity Data Logger
  • Software Free Download
  • Rechargeable Battery
  • 18" USB Programming Cable
  • Wall-Mount Clip
  • Instructions
  • Expert Technical Support
How to Set Up Logger VideoHow to Use Logger Video
