  • CNPALM001: Temperature Alarm with Min/Max

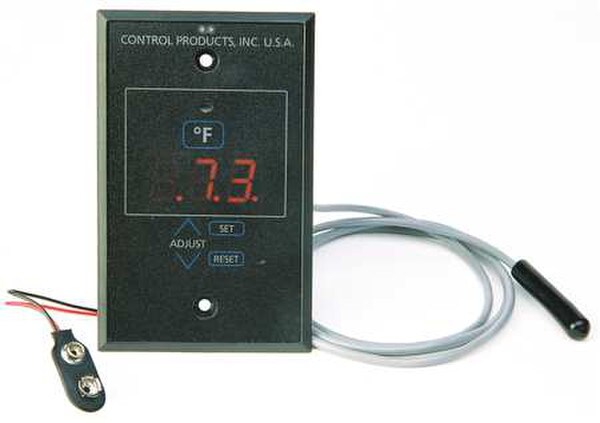

Temperature Monitor Alarm with Relay Output

(0)No Reviews yet
Provided: Each
Range: -40°F ~ 199°F
Requires 24VAC Power Source
**** We do not know  when or If this will be Available Again ****
Includes Sensor - See CNPSEN004 for Replacement

Notable Features

Wall mount temperature alarm provides temperature display with audible and visual alarms, high and low temperature alarm points, high and low temperature logging, calibration and alarm relay output.  High/Low Temperature Alarm with 9V Battery Backup (Batteries Not Included), Alarm Relay Output, 2 Temperature Alarm Setpoints, Touchpad Programming, Cord Length May Be Extended to 1000  Ft. Using Additional 18-26 AWG Three Conductor Wire.  Thermistor Temperature Sensor

Programmable High & Low Alarm Set Points
Sensor with 36" Lead Wire ( Can be extended 1000' with 3 Conductor wire)
Type of Sensor: Thermistor
Temperature Sensing Range: -40°F to 199°F
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution:
Temperature Scale: °F
Sensor Wire Length: 36" Lead Wire ( Can be extended 1000' with 3 Conductor wire)
Min/Max Memory: No
Dimensions: 4-1/2"H x 2-3/4"W x 1-1/4"D
Weight: 0.3 lbs
Calibration Available: Yes (purchased separately)
Power: 24V AC
Battery Life: A 9 volt battery (NOT INCLUDED) will transmit an audible alarm and allow you to read the display by pressing the RESET button during a power failure. Three decimal points indicate a low battery.
Battery Backup: Yes - Must Purchase Option Power Supply
Number of Sensors: 1
  • CNPALM001 Instruction
  • Time Delay0 or 45 Min.
  • Contact Rating1A @ 24VAC
  • Alarm SettingActivate on Temp Rise or Fall
Applications for use include heating, cooling, refrigeration, HVAC, food service, medical and industrial equipment.
