⚙️🔥 Temperature Controller 8 Amp Relay
Key Features
✅ High-accuracy temperature control across wide ranges
✅ Analog output for signal monitoring or remote indication
✅ Direct load switching — no external hardware required
✅ Compact design fits standard 1/8 DIN panel cutouts
✅ Ideal for ovens, chambers, or process control systems
Panel mount digital thermometer controller with analog voltage output of 1 mV per count, ± 3%, bright red LED display, 1/8 DIN plastic housing, hysteresis is ± 3°C or ± 5°F. Features manual adjust reset. Cycle time is 20 seconds ± 3 seconds. 115/230V AC operation.
Also available in type K-C°, J-F°and J-C° ( Call )
- K Type Thermocouple Input ( ONLY )
- Displays in °F
- Range °F, Type K ( 0°F ~1999 °F)
- Resolution °F, Type K ( 1 °F )
- Accuracy °F, Type K ( ±0.5% )
- 1/8 DIN Panel Mount
- Reset: Manual adjust
- Operating temperature: 0 to 40 °C
- Analog output: Un-linearizationed output 1 mV/count, ± 0.3% of sp
- T/C burnout: Upscale
- Output relay: 8a. at 115VAC, 4 a at 230 VAC, resistive load.
- Power source: 115 VAC, 230 VAC, ± 10% 50/60 hz
- Dimensions: 96 x 48 x 105 mm
- Weight: 0.38 kgs

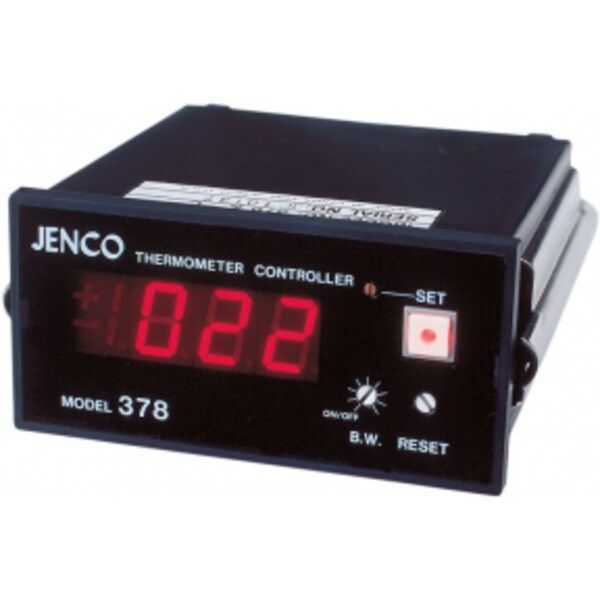

- Jenco 378-KF Controller
- Instruction Manual
- Requires Thermocouple Sensor and Power Cord
- Expert Technical Support
An accurate 1 mV per display count analog output is provided to interface the Temperature Controller with a recorder, printer and so on. The Temperature Controller uses a bright red LED screen. The Temperature Controllers are a single set point proportional/On-Off controller. The proportional bandwidth is adjustable from On-Off to 100 oC or 100 oF with built-in hysteresis. The cycle time is factory set to 20 second ± 3 seconds. The Temperature Controllers have a front panel manual adjust reset potentiometer. The Temperature Controllers are 1/8 DIN front panel mount inside of a plastic housing. Temperature probe connections are made via spade lug connectors.
