Name: JENDPM010: Model 765-RTD PT100 Input Panel Thermometer
SKU: JENDPM010
Price: 192.4 USD
Availability: InStock

(0)No Reviews yet

$192.40

Quantity Pricing

Quantity	Price
1 – 9	$192.40
10 – 24	$182.78
25 – 49	$173.16
50 – 74	$163.54
75 – 99	$158.73
100 +	$153.92

SKU: JENDPM010

Provided: Each

Compact High-Accuracy Digital Indicator for RTD Sensor

Quick Specs

🌡 Temperature Range: −58.0 to 199.9 °F (−5.0 to 199.9 °C)
🎯 Accuracy: High accuracy design
🌡 Sensor Input: RTD Pt-100
📈 Analog Output: 1 mV / digit
🔍 Resolution: 0.1°
🔄 Frequency Rejection: 50 / 60 Hz
🧭 Display Units: °F standard (°C / °F selectable w/ recalibration)
🖥 Display: 0.56 in high-efficiency LED

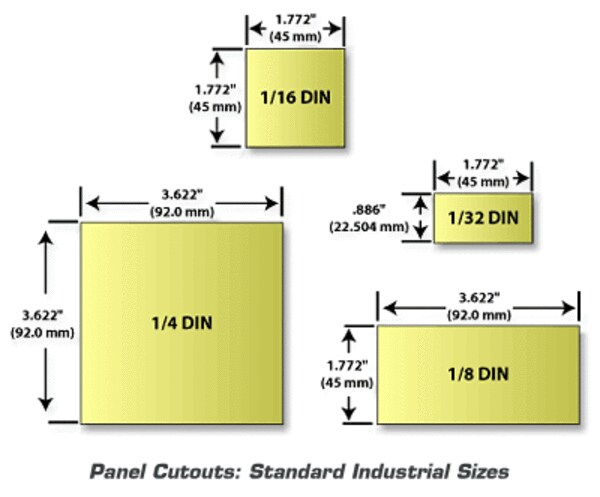

⚙️ Case Size: 1/8 DIN compact plastic enclosure
🔌 Power: 115 VAC / 230 VAC selectable

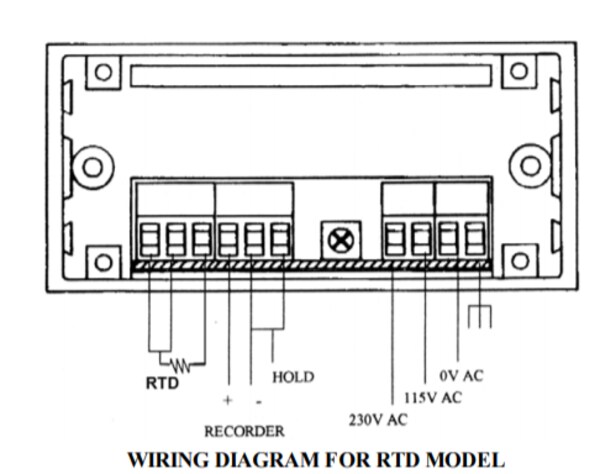

🔧 Wiring: Easy-disconnect terminal connectors
🛡 Protection: Upscale break detection

📦 Browse the related products below to find compatible RTD Pt-100 sensors, extension wire, and accessories that integrate seamlessly with this instrument.

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Quantity

Notable Features

Back

Panel mount digital thermometer with analog voltage output of 1 mV per digit, with analog output accuracy of ± 0.2%, features a bright red LED display and 1/8 DIN plastic housing. °C/°F selectable via plastic jumper behind front bezel. 3-wire Pt-100 RTD. Meter Operating Ambient Range 0 to 60°C. 115/230V AC operation

Key Features

✅ Designed for Pt-100 RTD temperature measurement
✅ Bright LED display for clear visibility
✅ 1 mV/digit analog output for system integration
✅ Compact 1/8 DIN size for panel installations
✅ Dual-voltage operation for flexible deployment
✅ Reliable industrial performance with noise rejection
✅ Simple installation and configuration
