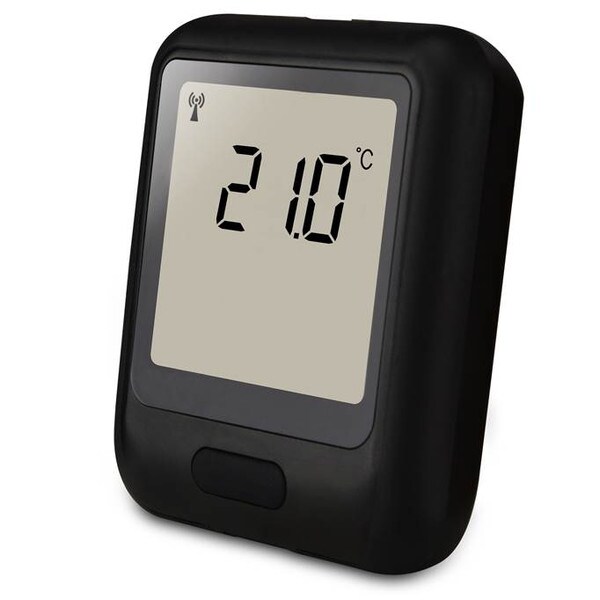

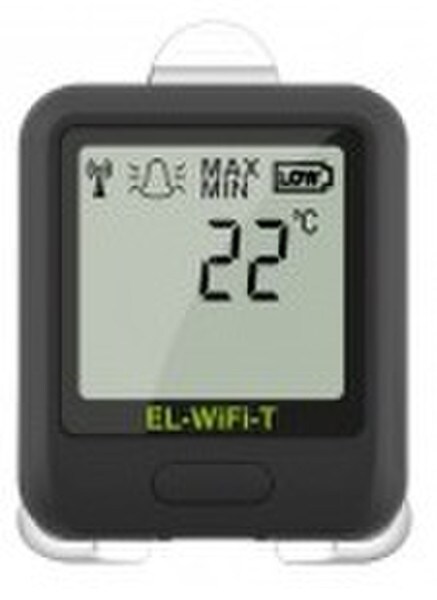

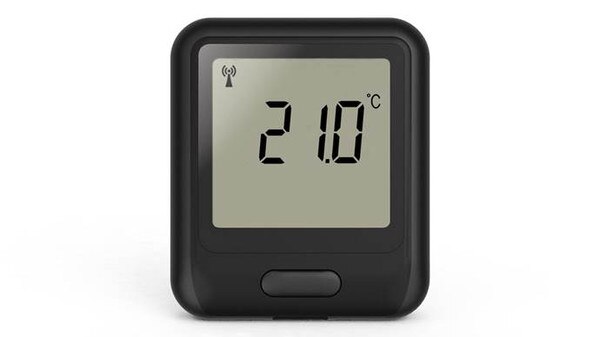

WiFi Temperature Recorder & Alarm
The EL-WiFi-T logger measures the temperature of the environment in which it is situated. Data is transmitted wirelessly via a WiFi network to a PC or the Cloud and viewed from anywhere.
The software installed on the PC will allow set up, data logging and data review. Set up features will include sensor name, °C/°F, sample rate, and high/low alarms. During configuration, the sensor will search for an existing wireless network while physically connected to the PC. This software is available to download for free from our website, see the link below.
After the configuration process it can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 120 days at 10 second sample interval). The range of the sensor can be increased by using WiFi extenders. When using the cloud service you can receive text messages and email alerts when unfavorable conditions exist. Simply log-in to your FREE account a see the entire history. Even if you loose power and the Network goes the Cloud Service will send you a loss of communication alert.
Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013
The software installed on the PC will allow set up, data logging and data review. Set up features will include sensor name, °C/°F, sample rate, and high/low alarms. During configuration, the sensor will search for an existing wireless network while physically connected to the PC. This software is available to download for free from our website, see the link below.
After the configuration process it can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 120 days at 10 second sample interval). The range of the sensor can be increased by using WiFi extenders. When using the cloud service you can receive text messages and email alerts when unfavorable conditions exist. Simply log-in to your FREE account a see the entire history. Even if you loose power and the Network goes the Cloud Service will send you a loss of communication alert.
Requires 802.11b compliant WiFi router/network. Compatible with Enterprise Networks from September 2013
Type of Sensor: | Thermistor |
Temperature Sensing Range: | -4°F ~ 140°F (-20°C ~ 60°C) |
Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
Temperature Resolution: | 0.1° |
Temperature Scale: | °F and °C |
Weight: | .45 |
Calibration Available: | Yes (purchased separately) |
Battery Life: | 6 Months - Rechargeable |
Battery Backup: | Yes - Must Purchase Option Power Supply |
IP Rating: | IP55: Dust Resistant & Sprayed Water |
Sampling Rate: | 10s 1m 5m 30m 1hr 6hr or 12hr |
Special Notes: | Supplied with wall bracket and micro USB lead |
Data Points: | 16,000 |
Exportable Data: | Yes |
Display: | LCD |
Requires Software: | YES - FREE Download |
Software Type: | Any Web Browser |
Network Connectivity: | WiFi |
- WiFi Data Logger
- Software Free Download
- Rechargeable Battery
- Wall bracket and 18" micro USB Cable
- Expert Technical Support
This instrument connects to a company or personal WiFi network. If you work for a company its best to discuss with your IT Department. The device only transmits data out to a internet cloud service. This service is FREE for the first TWO units and can cost $7.99 per month to use more than TWO units. Please call and discuss prior to purchase.
