K Thermocouple Jack Panel Large
K Jack Stripanel Large, full size 2 pole stripanel 6 circuits thermocouple type K.
CUSTOMIZE this Strippanel:
- Give Strippanel No. [e.g. 1032]
- Specify Number of circuits [e.g. 1032-12]
- Specify Thermocouple Type by Code [e.g. 1032-12-K]
- For vertical rows add suffix "V" [e.g. 1032-12-T-V]
- For Hi-Temp Stripanel [e.g. 1132-12-K]
- Avaialability: J,K,T,N,E,R,S,U, also "C"
- Gold-plated inserts are available. Use suffix "G" [e.g. 1032-12-K-G]

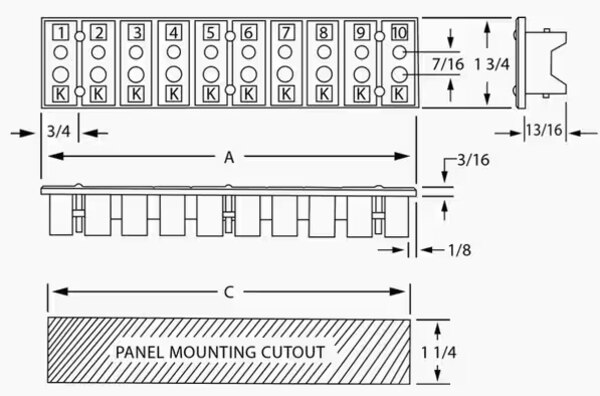

| Number of Circuits | "A" Dimension Panel Length | "C" Dimension Cutout Length | Full Size 2-Pole Panel Part No. | Hi-Temp Full Size 2-Pole Panel Part No. |
|---|---|---|---|---|
| 2 | 1 1/2" | 1 5/16" | 1032-2-K | 1132-2-K |
| 3 | 2 1/4" | 2 1/16" | 1032-3-K | 1132-3-K |
| 4 | 3" | 2 13/16" | 1032-4-K | 1132-4-K |
| 5 | 3 3/4" | 3 9/16" (84mm) | 1032-5-K | 1132-5-K |
| 6 | 4 1/2" | 4 5/16" | 1032-6-K | 1132-6-K |
| 7 | 5 1/4" | 5 1/16" | 1032-7-K | 1132-7-K |
| 8 | 6" | 5 13/16" | 1032-8-K | 1132-8-K |
| 9 | 6 3/4" | 6 9/16" | 1032-9-K | 1132-9-K |
| 10 | 7 1/2" | 7 5/16" | 1032-10-K | 1132-10-K |
| 11 | 8 1/4" | 8 1/16" | 1032-11-K | 1132-11-K |
| 12 | 9" | 8 13/16" | 1032-12-K | 1132-12-K |
