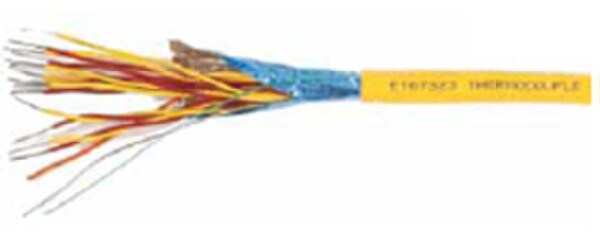

🟡 Type K 12-Pair Extension Wire
This Type K multi-pair thermocouple extension cable combines 12 individually numbered Chromel/Alumel pairs within a shielded PVC-jacketed construction for organized multi-point temperature monitoring. The aluminum Mylar shield and drain wire help protect low-level thermocouple signals, while the 220°F (105°C) PVC insulation and outer jacket provide durable protection for industrial instrumentation and control installations.
──────────────────────────
Ideal Applications
🏭 Multi-point industrial temperature monitoring
📊 Data acquisition systems
⚙️ Process control installations
🧮 Multi-zone thermocouple systems
🔌 Centralized instrumentation panels
🏢 Plant and facility monitoring systems
🛡️ Applications requiring shielded signal wiring
Conductor:
Size: 20 awg solid
Nominal OD: .032”
Positive Leg: KP - NiCr
Negative Leg: KP - NiAl
Insulation:
Material: Extruded PVC 105°C
Nominal Wall: .015”
Nominal OD: .062”
Color Code: (+) Yellow, (-) Red
Individual Pairs:
Nominal Lay: 2.50” Left Hand Lay
Nominal OD: .124”
Numbers: 1 through 12
Cable:
Pairs: 12 twisted pairs
Nominal Lay Length: 8.00” Left Hand Lay
Communication Wire: 22 awg stranded tinned copper, Orange PVC
Separator: Clear Mylar tape, minimum 25% overlap
Drain Wire: 22 awg stranded tinned copper
Shield: Aluminum Mylar tape, minimum 25% overlap
Nominal OD: .433”
Jacket:
Material: Extruded PVC 105°C
Nominal Wall: .050”
Nominal Diameter: .533”
Color: Yellow
Jacket printed with UL designation.
Lengths:
Standard Lengths are 1,000Ft ± 10% or customer specified
- "K" 12-Pair Thermocouple Extension Wire
- Expert Technical Support
Compliance & Risk Mitigation
🛡 Shield helps reduce electrical interference
📋 Numbered pairs simplify circuit identification
🧮 Supports organized multi-point installations
🟡 Maintains Type K extension compatibility
🌡 Supports temperature measurement integrity
🔧 Simplifies installation and troubleshooting
Use this cable only with compatible Type K thermocouple circuits. Verify conductor polarity, shielding, environmental conditions, and the 220°F (105°C) PVC temperature limitation before installation.
──────────────────────────
Other wire configurations are available please speak with a TIPTEMP Thermal Advisor to discuss number of pairs required, jacket insulation, drain wire, UL rating or other custom features.
